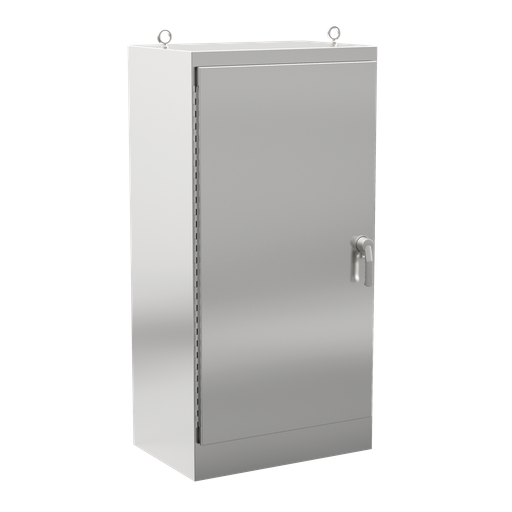

Freestand 1 Door Single Access 3Pt Type 4X, 72x36x30, Brushed, SS304
MFG #A723630SSFSN4
$17,294.00Â /Â E
EACH
EACH
Product Description:
Designed to house systems incorporating large components or complex mounting configurations. This Freestand 1 Door Single Access 3Pt Type 4X, A723630SSFSN4 item measures 72x36x30in. with a material of SS304 finish Brushed.
HESCO Part Number
HFA723630SSFSN4
UPC
783510111557
Manufacturer Part Number
A723630SSFSN4
Manufacturer
Hoffman
Freestand 1 Door Single Access 3Pt Type 4X, 72x36x30, Brushed, SS304
MFG #A723630SSFSN4
Product Description:
Designed to house systems incorporating large components or complex mounting configurations. This Freestand 1 Door Single Access 3Pt Type 4X, A723630SSFSN4 item measures 72x36x30in. with a material of SS304 finish Brushed.
HESCO Part Number
HFA723630SSFSN4
UPC
783510111557
Manufacturer Part Number
A723630SSFSN4
Manufacturer
Hoffman
$17,294.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth; no holes or knockouts
- Two-door enclosures provided with a removable centerpost for easy panel installation
- Heavy-duty lifting eyes are Type 316L stainless steel
- Heavy-duty three-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle
- Seemless foam-in-place gasket assures a water-tight and dust-tight seal
- Body flange trough collar excludes liquids and contaminants
- Heavy-gauge continuous hinges support each door
- High-impact thermoplastic data pocket provided with each enclosure
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Optional panels and rack mounting angles can be mounted anywhere along channels
- Bonding provision on door; grounding stud on body
- Accessory mounting channel provided in enclosure top
Specifications
Height (H) | :Â Â | 1,830 |
Width (W) | :Â Â | 916 |
Depth (D) | :Â Â | 764 |
Protection Rating | :Â Â | NEMA Type 4X |
Finish | :Â Â | Brushed #3 |
Thickness (T) | :Â Â | 2.78 |
Modification Services | :Â Â | Yes |
Type Number | :Â Â | Type 3R |
IP Rating | :Â Â | IP66 |
NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
Weight | :Â Â | 442 |
Material | :Â Â | Stainless Steel |
Size | :Â Â | 72.06x36.06x30.06 in |
Instruction Manual
Instruction Manual - 87743623 - NAM-US
Instruction Manual - 35320001 - NAM-US
Instruction Manual - 99401640 - NAM-US
Instruction Manual - 99401665 - NAM-US
Instruction Manual - 99401677 - NAM-US
Data Sheet
Data Sheet - Spec-00382 - NAM-CA
Data Sheet - Spec-00037 - NAM-US
Data Sheet - Spec-00875 - NAM-US
Data Sheet - Spec-00838 - NAM-US
Downloads
Spec Sheet





Data Sheet




Downloads

- Seams continuously welded and ground smooth; no holes or knockouts
- Two-door enclosures provided with a removable centerpost for easy panel installation
- Heavy-duty lifting eyes are Type 316L stainless steel
- Heavy-duty three-point latching mechanism operated by Type 316L stainless steel PowerGlide padlocking handle
- Seemless foam-in-place gasket assures a water-tight and dust-tight seal
- Body flange trough collar excludes liquids and contaminants
- Heavy-gauge continuous hinges support each door
- High-impact thermoplastic data pocket provided with each enclosure
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Optional panels and rack mounting angles can be mounted anywhere along channels
- Bonding provision on door; grounding stud on body
- Accessory mounting channel provided in enclosure top
Specifications
Height (H) :Â Â 1,830 Width (W) :Â Â 916 Depth (D) :Â Â 764 Protection Rating :Â Â NEMA Type 4X Finish :Â Â Brushed #3 Thickness (T) :Â Â 2.78 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 NEMA Rating :Â Â 4X Watertight, corrosion-resistant Weight :Â Â 442 Material :Â Â Stainless Steel Size :Â Â 72.06x36.06x30.06 in - Instruction Manual
