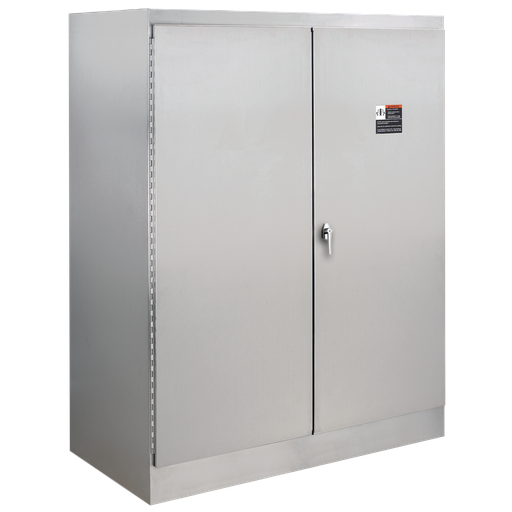

Freestand Type 12 2 Door Single Access, 72x72x24, Brushed, SS304
MFG #A727224SSFSD
$25,544.00Â /Â E
EACH
EACH
Product Description:
Freestanding enclosure includes two doors for access to internal equipment. This Freestand Type 12 2 Door Single Access, A727224SSFSD item measures 72x72x24 inches with a material of SS304 finish Brushed.
HESCO Part Number
HFA727224SSFSD
UPC
783510846107
Manufacturer Part Number
A727224SSFSD
Manufacturer
Hoffman
Freestand Type 12 2 Door Single Access, 72x72x24, Brushed, SS304
MFG #A727224SSFSD
Product Description:
Freestanding enclosure includes two doors for access to internal equipment. This Freestand Type 12 2 Door Single Access, A727224SSFSD item measures 72x72x24 inches with a material of SS304 finish Brushed.
HESCO Part Number
HFA727224SSFSD
UPC
783510846107
Manufacturer Part Number
A727224SSFSD
Manufacturer
Hoffman
$25,544.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Capable of complex mounting configurations by addition of 19 inch rack-mounting accessory in Type 12 environments
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners welded to back of enclosures maintain flatness and increase rigidity
- Heavy-duty lifting eyes are Type 316 stainless steel
- Plated steel 3-point latching and keylocking handle
- Heavy-gauge continuous hinges support each door
- Data pocket, provided on door(s) with 3-point latches, is high-impact thermoplastic
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Optional panels and rack-mounting angles can be mounted anywhere along channels
- Oil-resistant door gasket attached with oil-resistant adhesive and held in place with steel retaining strips
- Bonding provision on door; grounding studs on body
- Accessory mounting channel provided in enclosure top
Specifications
| Height (H) | :Â Â | 1,830 |
| Width (W) | :Â Â | 1,830 |
| Depth (D) | :Â Â | 611 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 2.78 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP55 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 660 |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 72.06x72.06x24.06 in |
- Capable of complex mounting configurations by addition of 19 inch rack-mounting accessory in Type 12 environments
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners welded to back of enclosures maintain flatness and increase rigidity
- Heavy-duty lifting eyes are Type 316 stainless steel
- Plated steel 3-point latching and keylocking handle
- Heavy-gauge continuous hinges support each door
- Data pocket, provided on door(s) with 3-point latches, is high-impact thermoplastic
- Mounting channels welded horizontally to interior body sides at top, bottom and center
- Optional panels and rack-mounting angles can be mounted anywhere along channels
- Oil-resistant door gasket attached with oil-resistant adhesive and held in place with steel retaining strips
- Bonding provision on door; grounding studs on body
- Accessory mounting channel provided in enclosure top
Specifications
Height (H) :Â Â 1,830 Width (W) :Â Â 1,830 Depth (D) :Â Â 611 Protection Rating :Â Â NEMA Type 12 Finish :Â Â Brushed #4 Thickness (T) :Â Â 2.78 Modification Services :Â Â Yes Type Number :Â Â Type 12 IP Rating :Â Â IP55 NEMA Rating :Â Â 12 Indoor, dust-resistant Weight :Â Â 660 Material :Â Â Stainless Steel Size :Â Â 72.06x72.06x24.06 in - Data Sheet
Data Sheet - Spec-00383 - NAM-CAData Sheet - Spec-00588 - NAM-USData Sheet - Spec-00839 - NAM-USData Sheet - Spec-00874 - NAM-US
Instruction ManualInstruction Manual - 99401640 - NAM-USInstruction Manual - 99401677 - NAM-US
DownloadsSpec Sheet
