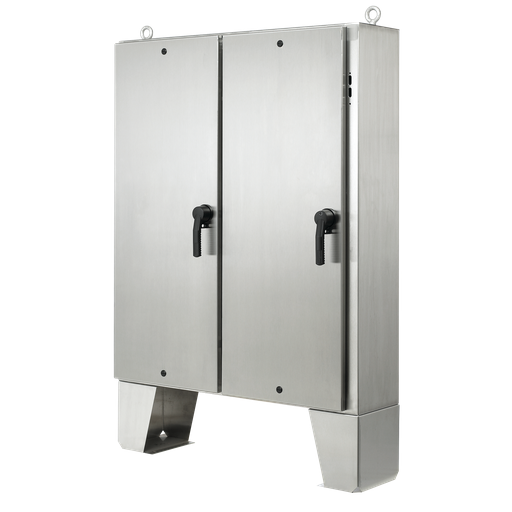

Floor-Mount Disconnect 2-Dr 1/4-Turn 3pt Latch Type 4X, 72x61x18, Brushed, SS304
MFG #A72HX6118SSLPQT
$19,737.00Â /Â E
EACH
EACH
Product Description:
Floor-mount 2-door Disconnect enclosures provide corrosion protection in indoor/outdoor environments. This Floor-Mount Disconnect 2-Dr 1/4-Turn 3pt Latch Type 4X, A72HX6118SSLPQT item measures 72x61x18in with material SS304 finish Brushed.
HESCO Part Number
HFA72HX6118SSLPQT
UPC
783510145477
Manufacturer Part Number
A72HX6118SSLPQT
Manufacturer
Hoffman
Floor-Mount Disconnect 2-Dr 1/4-Turn 3pt Latch Type 4X, 72x61x18, Brushed, SS304
MFG #A72HX6118SSLPQT
Product Description:
Floor-mount 2-door Disconnect enclosures provide corrosion protection in indoor/outdoor environments. This Floor-Mount Disconnect 2-Dr 1/4-Turn 3pt Latch Type 4X, A72HX6118SSLPQT item measures 72x61x18in with material SS304 finish Brushed.
HESCO Part Number
HFA72HX6118SSLPQT
UPC
783510145477
Manufacturer Part Number
A72HX6118SSLPQT
Manufacturer
Hoffman
$19,737.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 3 Point latching mechanism for simple, reliable one-motion closure
- Seams continuously welded and ground smooth
- Seamless foam-in-place one-piece gasket provides water-, oil- and dust-tight seal against contaminants
- Heavy-duty three-point latching mechanism on each door, operated by nVent HOFFMAN's black die-cast PowerGlide padlocking handle
- Black die-cast quarter-turn latches with slotted insert provided on the top and bottom of each door
- Master door is far right-hand door on all enclosures
- Master door handle provided with integral screwdriver defeater
- Mechanical interlock activated by master door prevents slave door from being opened first; doors can be closed in any order
- Concealed hinges provide 180-degree door opening and allow easy door removal and cleaning of hinge area
- Bolt-on, 15-inch high stainless steel floor stands
- Heavy-duty Type 316L stainless steel lifting eyes
- Collar studs on inside of enclosure back for optional mounting panels
- Removable centerpost for easy panel installation
- Bonding provisions on doors and ground studs on body
- No interior stiffeners to obstruct component mounting
- Provisions for mounting optional fluorescent light package
- Flange trough collar on all four sides of door openings
- Data pocket is high-impact plastic attached with pressure-sensitive adhesive
- Preferred cutout on right-hand flange provides mounting for most disconnect operator
Specifications
| Height (H) | :Â Â | 1,830 |
| Width (W) | :Â Â | 1,557 |
| Depth (D) | :Â Â | 459 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Brushed #4 |
| Body Thickness | :Â Â | 2.78 |
| Door Thickness | :Â Â | 1.98 |
| Quarter-Turn Latch Quantity | :Â Â | 4 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 539 |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 72.06x61.31x18.06 in |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
Certificate
Certificate - CERT-00079 - NAM-US
Certificate - CE-UKCA-00034_Enclosure-SS-4X - NAM-US
Instruction Manual
Instruction Manual - 99401640 - NAM-US
Instruction Manual - 35320001 - NAM-US
Instruction Manual - 99401677 - NAM-US
Data Sheet
Data Sheet - Spec-00139 - NAM-CA
Data Sheet - Spec-00915 - NAM-US
