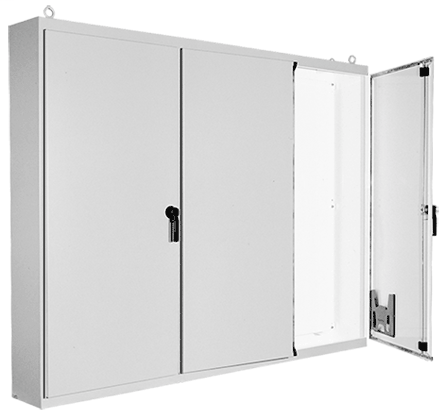

Free-Stand, Multi-Door, Type 12 - A86M3E20
MFG #A86M3E20
$15,653.00Â /Â E
EACH
EACH
Product Description:
Available with three, four or five doors for housing larger control systems in industrial environments.
HESCO Part Number
HFA86M3E20
UPC
783510913502
Manufacturer Part Number
A86M3E20
Manufacturer
Hoffman
Free-Stand, Multi-Door, Type 12 - A86M3E20
MFG #A86M3E20
Product Description:
Available with three, four or five doors for housing larger control systems in industrial environments.
HESCO Part Number
HFA86M3E20
UPC
783510913502
Manufacturer Part Number
A86M3E20
Manufacturer
Hoffman
$15,653.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Blower Fan Package
- 12-gauge steel (.121-in.)
- Industrial Corrosion Inhibitors
- Seams continuously welded and ground smooth; no holes or knockouts
- Electric Heater
- Heavy steel back stiffeners maintain flatness and increase rigidity
- Electrical Interlocks
- Heavy-duty lifting eyes anchored into reinforced top
- InterSafe Data Interface Ports, Type 4/4X/12
- Overlapping, gasketed openings on two-door centerposts
- Panelite Enclosure Lights Overview
- At two-door openings, gasketed overlapping doors eliminate need for centerposts
- Three-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
- Panel supports
- Large data pocket is high-impact thermoplastic
- Oil-resistant door gasket
- Panel mounting studs
- Available with panels included or panels purchased separately
- Bonding provision on doors
- Provisions for mounting fluorescent lights
- Panels are furnished with enclosure. Removable panel not included with models ending in LP.
Specifications
| Bulletin Number | :Â Â | A27 |
| Material | :Â Â | Steel |
| Model Code | :Â Â | 91350 |
| Ship Wt. Std. Pkg. (lbs) | :Â Â | 1780.0 |
| Interchangeable | :Â Â | False |
| Finish | :Â Â | Painted Steel |
| Catalog Number | :Â Â | A86M3E20 |
| A in. | :Â Â | 86.12 |
| B in. | :Â Â | 112 |
| C in. | :Â Â | 20.12 |
| Interior Finish | :Â Â | White |
| Number of Large Panels | :Â Â | 1 |
| Size of Large Panels in. | :Â Â | 78.00 x 70.00 |
| Number of Small Panels | :Â Â | 1 |
| Size of Small Panels in. | :Â Â | 78.00 x 34.00 |
| Number of Doors | :Â Â | 3 |
| Number of Lifting Eyes | :Â Â | 4 |
| Standards | :Â Â | UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA, File No. 42186, Type 12 || IEC 60529, IP55 |
- Blower Fan Package
- 12-gauge steel (.121-in.)
- Industrial Corrosion Inhibitors
- Seams continuously welded and ground smooth; no holes or knockouts
- Electric Heater
- Heavy steel back stiffeners maintain flatness and increase rigidity
- Electrical Interlocks
- Heavy-duty lifting eyes anchored into reinforced top
- InterSafe Data Interface Ports, Type 4/4X/12
- Overlapping, gasketed openings on two-door centerposts
- Panelite Enclosure Lights Overview
- At two-door openings, gasketed overlapping doors eliminate need for centerposts
- Three-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
- Panel supports
- Large data pocket is high-impact thermoplastic
- Oil-resistant door gasket
- Panel mounting studs
- Available with panels included or panels purchased separately
- Bonding provision on doors
- Provisions for mounting fluorescent lights
- Panels are furnished with enclosure. Removable panel not included with models ending in LP.
Specifications
Bulletin Number :Â Â A27 Material :Â Â Steel Model Code :Â Â 91350 Ship Wt. Std. Pkg. (lbs) :Â Â 1780.0 Interchangeable :Â Â False Finish :Â Â Painted Steel Catalog Number :Â Â A86M3E20 A in. :Â Â 86.12 B in. :Â Â 112 C in. :Â Â 20.12 Interior Finish :Â Â White Number of Large Panels :Â Â 1 Size of Large Panels in. :Â Â 78.00 x 70.00 Number of Small Panels :Â Â 1 Size of Small Panels in. :Â Â 78.00 x 34.00 Number of Doors :Â Â 3 Number of Lifting Eyes :Â Â 4 Standards :Â Â UL 508A Listed; Type 12; File No. E61997 || cUL Listed per CSA C22.2 No 94; Type 12; File No. E61997 || NEMA/EEMAC Type 12 || CSA, File No. 42186, Type 12 || IEC 60529, IP55 - Documents
Spec Sheet
2D DXF CADRepainting InstructionsInstruction Manual3D STEP CADLarge Enclosure Handling ManualInstruction Manual
CertificationsUL CertificationEU CertificationDeclaration of ComplianceCSA Certification
