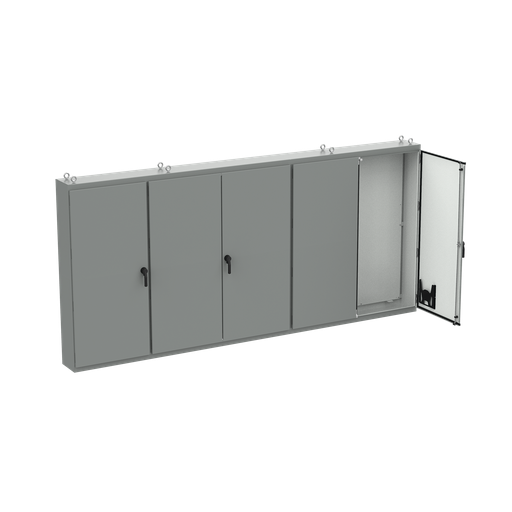

Free-Stand Multi-Door Type 12 White Inside 5Dr, 86.12x187.00x14.12, Gray, Steel
MFG #A86M5E
$21,686.00Â /Â E
EACH
EACH
Product Description:
NEMA Type 12 Multidoor Free-Stand enclosure with interlock for use in industiral environments. This Free-Stand Multi-Door Type 12 White Inside 5Dr, A86M5E item measures 86.12x187.00x14.12in. with a material of Steel color Gray.
HESCO Part Number
HFA86M5E
UPC
783510300302
Manufacturer Part Number
A86M5E
Manufacturer
Hoffman
Free-Stand Multi-Door Type 12 White Inside 5Dr, 86.12x187.00x14.12, Gray, Steel
MFG #A86M5E
Product Description:
NEMA Type 12 Multidoor Free-Stand enclosure with interlock for use in industiral environments. This Free-Stand Multi-Door Type 12 White Inside 5Dr, A86M5E item measures 86.12x187.00x14.12in. with a material of Steel color Gray.
HESCO Part Number
HFA86M5E
UPC
783510300302
Manufacturer Part Number
A86M5E
Manufacturer
Hoffman
$21,686.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth; no holes or knockouts
- Heavy steel back stiffeners maintain flatness and increase rigidity
- Heavy-duty lifting eyes anchored into reinforced top
- Overlapping, gasketed openings on two-door centerposts
- At two-door openings, gasketed overlapping doors eliminate need for centerposts
- Three-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
- Large data pocket is high-impact thermoplastic
- Oil-resistant door gasket
- Panel mounting studs
- Bonding provision on doors
- Provisions for mounting fluorescent lights
Specifications
| Height (H) | :Â Â | 2,187 |
| Width (W) | :Â Â | 4,750 |
| Depth (D) | :Â Â | 359 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Finish | :Â Â | Powder Coated |
| Color | :Â Â | Gray |
| Color Code | :Â Â | ANSI 61 |
| Interior Color | :Â Â | White |
| Thickness (T) | :Â Â | 3.04 |
| Large Panel Quantity | :Â Â | 2 |
| Small Panel Quantity | :Â Â | 1 |
| Door Quantity | :Â Â | 5 |
| Lifting Eye Quantity | :Â Â | 8 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP55 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 2,642 |
| Material | :Â Â | Steel |
| Size | :Â Â | 86.12x187.00x14.12 in |
