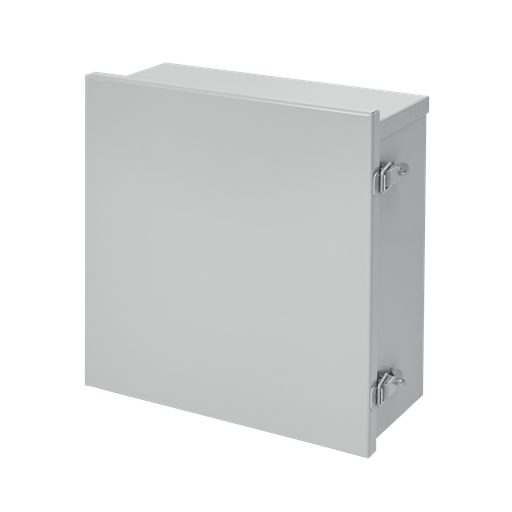

Drip-Shield Hinged Lift-Off Cover Type 3R, 8.00x6.00x4.00, Gray, Steel
MFG #A8R64HCLO
$76.60Â /Â E
EACH
EACH
Product Description:
Drip-Shield Hinged Lift-Off Cover Type 3R protects components in outdoor applications. This Drip-Shield Hinged Lift-Off Cover Type 3R, A8R64HCLO item measures 8.00x6.00x4.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA8R64HCLO
UPC
783510388607
Manufacturer Part Number
A8R64HCLO
Manufacturer
Hoffman
Drip-Shield Hinged Lift-Off Cover Type 3R, 8.00x6.00x4.00, Gray, Steel
MFG #A8R64HCLO
Product Description:
Drip-Shield Hinged Lift-Off Cover Type 3R protects components in outdoor applications. This Drip-Shield Hinged Lift-Off Cover Type 3R, A8R64HCLO item measures 8.00x6.00x4.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFA8R64HCLO
UPC
783510388607
Manufacturer Part Number
A8R64HCLO
Manufacturer
Hoffman
$76.60Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Drip-shield top and seam-free sides, front and back
- Galvanized steel lift-off hinges with stainless steel pins
- Provisions for padlocking on each draw pull catch
- Embossed mounting holes on back of enclosure
- Gasketing along top of door
- No knockouts
- Quick-release door latches
- Enclosures are finished with paint over plated surfaces
Specifications
| Height (H) | :Â Â | 203 |
| Width (W) | :Â Â | 152 |
| Depth (D) | :Â Â | 102 |
| Protection Rating | :Â Â | NEMA Type 3R |
| Finish | :Â Â | Galvanized |
| Color | :Â Â | Gray |
| Color Code | :Â Â | ANSI 61 |
| Body Thickness | :Â Â | 1.52 |
| Door Thickness | :Â Â | 1.52 |
| Mounting (G) | :Â Â | 232 |
| Overall Dimensions (L x W) | :Â Â | 257 x 184 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP32 |
| Bracket Width | :Â Â | 127 |
| Weight | :Â Â | 5 |
| Material | :Â Â | Steel |
| Size | :Â Â | 8.00x6.00x4.00 in |
| NEMA Rating | :Â Â | 3R Weather-resistant, except dust |
- Drip-shield top and seam-free sides, front and back
- Galvanized steel lift-off hinges with stainless steel pins
- Provisions for padlocking on each draw pull catch
- Embossed mounting holes on back of enclosure
- Gasketing along top of door
- No knockouts
- Quick-release door latches
- Enclosures are finished with paint over plated surfaces
Specifications
Height (H) :Â Â 203 Width (W) :Â Â 152 Depth (D) :Â Â 102 Protection Rating :Â Â NEMA Type 3R Finish :Â Â Galvanized Color :Â Â Gray Color Code :Â Â ANSI 61 Body Thickness :Â Â 1.52 Door Thickness :Â Â 1.52 Mounting (G) :Â Â 232 Overall Dimensions (L x W) :Â Â 257 x 184 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP32 Bracket Width :Â Â 127 Weight :Â Â 5 Material :Â Â Steel Size :Â Â 8.00x6.00x4.00 in NEMA Rating :Â Â 3R Weather-resistant, except dust - Certificate
Certificate - CERT-00065 - NAM-USCertificate - CE-UKCA-00010_Enclosure-3R - NAM-US
Instruction ManualInstruction Manual - 99401484 - NAM-USInstruction Manual - 23155002 - NAM-US
DownloadsSpec Sheet
Data SheetData Sheet - HOFFMAN-SPEC-00267-A3LOPanelMounting-EN - NAM-CA
