Freestand Single Access White Inside Type 12, 90.06x36.06x36.06, Gray, Steel
MFG #A903636FS
$4,852.00Â /Â E
EACH
EACH
Product Description:

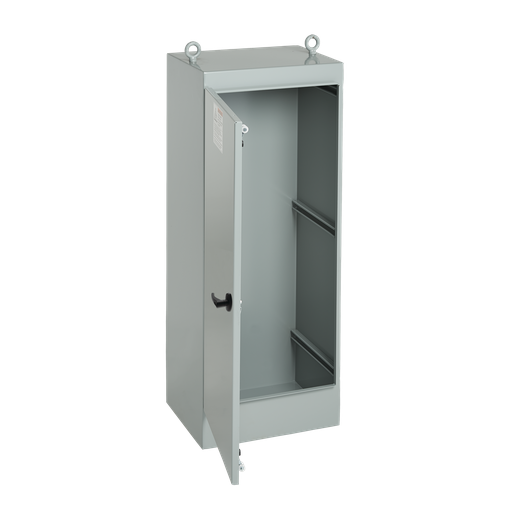

NEMA Type 12, Free-Stand, Front and/or Rear Access, Enclosures protect equipment and employees. This Freestand Single Access White Inside Type 12, A903636FS item measures 90.06x36.06x36.06in. with a material of Steel colored Gray.
HESCO Part Number
HFA903636FS
UPC
783510252403
Manufacturer Part Number
A903636FS
Manufacturer
Hoffman
Freestand Single Access White Inside Type 12, 90.06x36.06x36.06, Gray, Steel
MFG #A903636FS
Product Description:
NEMA Type 12, Free-Stand, Front and/or Rear Access, Enclosures protect equipment and employees. This Freestand Single Access White Inside Type 12, A903636FS item measures 90.06x36.06x36.06in. with a material of Steel colored Gray.
HESCO Part Number
HFA903636FS
UPC
783510252403
Manufacturer Part Number
A903636FS
Manufacturer
Hoffman
$4,852.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
- Lifting eyes for easy handling
- 3-point latches operated by oil-tight key-locking handle
- Concealed, easy-to-remove hinges
- Data pockets are high-impact thermoplastic
- Internal mounting channels welded horizontally to sides at top, bottom and center
- Optional panels and rack mount angles can be mounted anywhere along channels
- Oil-resistant door gasket
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Height (H) | :Â Â | 2,288 |
Width (W) | :Â Â | 916 |
Depth (D) | :Â Â | 916 |
Protection Rating | :Â Â | NEMA Type 12 |
Finish | :Â Â | Powder Coated |
Color | :Â Â | Gray |
Interior Color | :Â Â | White |
Color Code | :Â Â | ANSI 61 |
Thickness (T) | :Â Â | 2.66 |
Rack Unit Quantity | :Â Â | 45 |
Lifting Eye Quantity | :Â Â | 4 |
Modification Services | :Â Â | Yes |
Type Number | :Â Â | Type 12 |
IP Rating | :Â Â | IP55 |
Weight | :Â Â | 550 |
Material | :Â Â | Steel |
Size | :Â Â | 90.06x36.06x36.06 in |
NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
Certificate
Certificate - CERT-00264 - NAM-US
Certificate - Cert-00229 - NAM-US
Certificate - CERT-00059 - NAM-US
Certificate - CE-00020 - NAM-US
Instruction Manual
Instruction Manual - 23155002 - NAM-US
Instruction Manual - 99401640 - NAM-US
Instruction Manual - 93310001 - NAM-US
Instruction Manual - 99401677 - NAM-US
Data Sheet
Data Sheet - Spec-00291 - NAM-CA
Data Sheet - Spec-00781 - NAM-US
Data Sheet - Spec-01433 - NAM-CA
Downloads
Spec Sheet




Instruction Manual




Data Sheet



Downloads

- Seams continuously welded and ground smooth; no holes or knockouts
- Stiffeners on back of two-door enclosures maintain flatness and increase rigidity
- Lifting eyes for easy handling
- 3-point latches operated by oil-tight key-locking handle
- Concealed, easy-to-remove hinges
- Data pockets are high-impact thermoplastic
- Internal mounting channels welded horizontally to sides at top, bottom and center
- Optional panels and rack mount angles can be mounted anywhere along channels
- Oil-resistant door gasket
- Bonding provision on door
- Provision for mounting fluorescent light
Specifications
Height (H) :Â Â 2,288 Width (W) :Â Â 916 Depth (D) :Â Â 916 Protection Rating :Â Â NEMA Type 12 Finish :Â Â Powder Coated Color :Â Â Gray Interior Color :Â Â White Color Code :Â Â ANSI 61 Thickness (T) :Â Â 2.66 Rack Unit Quantity :Â Â 45 Lifting Eye Quantity :Â Â 4 Modification Services :Â Â Yes Type Number :Â Â Type 12 IP Rating :Â Â IP55 Weight :Â Â 550 Material :Â Â Steel Size :Â Â 90.06x36.06x36.06 in NEMA Rating :Â Â 12 Indoor, dust-resistant - Certificate
Certificate - CERT-00264 - NAM-US
Certificate - Cert-00229 - NAM-US
Certificate - CERT-00059 - NAM-US
Certificate - CE-00020 - NAM-US
Instruction ManualInstruction Manual - 23155002 - NAM-US
Instruction Manual - 99401640 - NAM-US
Instruction Manual - 93310001 - NAM-US
Instruction Manual - 99401677 - NAM-US
Data SheetData Sheet - Spec-00291 - NAM-CA
Data Sheet - Spec-00781 - NAM-US
Data Sheet - Spec-01433 - NAM-CA
DownloadsSpec Sheet
