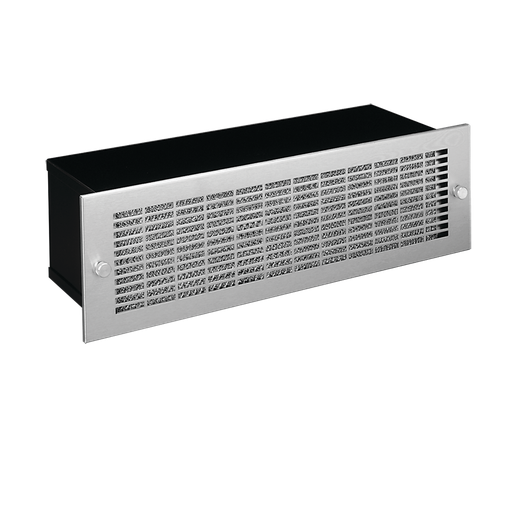

Rack-Mountable Fan Package, 275CFM 115V, Brushed, SS304
MFG #ADB275
$1,105.00Â /Â E
EACH
EACH
Product Description:
Blower Fan Package provides the maximum amount of cooling air in the least amount of space. This Rack-Mountable Fan Package, ADB275 item is rated 275CFM 115V with a material of SS304 finish Brushed.
HESCO Part Number
HFADB275
UPC
783510222703
Manufacturer Part Number
ADB275
Manufacturer
Hoffman
Rack-Mountable Fan Package, 275CFM 115V, Brushed, SS304
MFG #ADB275
Product Description:
Blower Fan Package provides the maximum amount of cooling air in the least amount of space. This Rack-Mountable Fan Package, ADB275 item is rated 275CFM 115V with a material of SS304 finish Brushed.
HESCO Part Number
HFADB275
UPC
783510222703
Manufacturer Part Number
ADB275
Manufacturer
Hoffman
$1,105.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Intake grille is easily removed with two captive thumbnuts
- Washable aluminum filter
- Single phase motor powers the statically balanced blower
- Motor is thermally protected and cooled by incoming forced air
- Direct drive induction motor contains permanently lubricated ball bearings
- Lubricant protects from -20 F to 298 F (-29 C to 148 C)
- Rotating components are suspended on neoprene shock-mounts
- Three-conductor power cord (five feet long)
- The unit is self-supporting with 16 gauge steel flanges notched per EIA RS-310-D.
- An exhaust grille and filter package (catalog number AEXGR275) is required and must be ordered separately
- Grill is 20 gauge stainless steel 304 and the housing is 16 gauge mild steel
Specifications
| Airflow | :Â Â | 467 |
| Nominal Voltage | :Â Â | 115 |
| Height (H) | :Â Â | 146 |
| Width (W) | :Â Â | 483 |
| Depth (D) | :Â Â | 184 |
| Max Current | :Â Â | 1.2 |
| Voltage AC | :Â Â | 100 |
| Material | :Â Â | Stainless Steel 304 |
| Finish | :Â Â | Brushed |
| Thickness (T) | :Â Â | 1 |
| Weight | :Â Â | 14 |
| Size | :Â Â | 5.75 x 19 x 7.25 in |
| Flow Rate | :Â Â | 275 CFM max |
| Voltage Rating | :Â Â | 100 - 120 VAC |
| Amperage Rating | :Â Â | 1.2 A |
| Motor Type | :Â Â | AC Motor |
| Ambient Temperature | :Â Â | 298 Deg F max |
