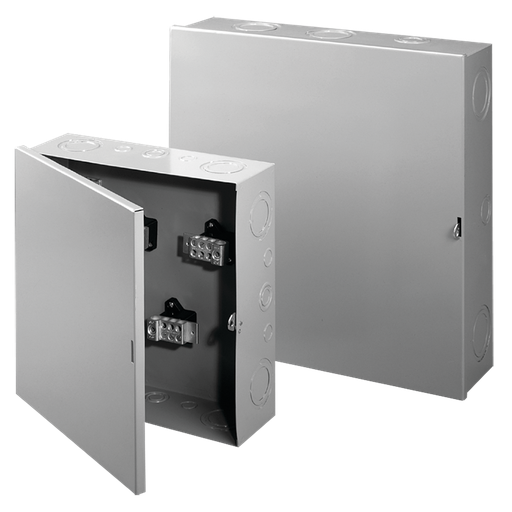

Splitter Box Type 1 4-wire 225 amps, 16.00x16.00x5.00, Gray, Steel
MFG #ASB224R
$231.00Â /Â E
EACH
EACH
Product Description:
Splitter Box, Type 1 splits feeder circuit conductors into multiple branch circuit conductors. This Splitter Box Type 1 4-wire 225 amps, ASB224R item measures 16.00x16.00x5.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFASB224R
UPC
783510138738
Manufacturer Part Number
ASB224R
Manufacturer
Hoffman
Splitter Box Type 1 4-wire 225 amps, 16.00x16.00x5.00, Gray, Steel
MFG #ASB224R
Product Description:
Splitter Box, Type 1 splits feeder circuit conductors into multiple branch circuit conductors. This Splitter Box Type 1 4-wire 225 amps, ASB224R item measures 16.00x16.00x5.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFASB224R
UPC
783510138738
Manufacturer Part Number
ASB224R
Manufacturer
Hoffman
$231.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Various numbers and sizes of combination knockouts are provided on all four sides: see Knockout Size and Spacing Table
- Hinged covers
- Mounting holes in back
- Includes single point ground lug
- Ground Splitter (ground bar) accessory available
Specifications
| Height (H) | :Â Â | 406 |
| Width (W) | :Â Â | 406 |
| Depth (D) | :Â Â | 127 |
| Protection Rating | :Â Â | NEMA Type 1 |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.52 |
| Number of Wires | :Â Â | 4 |
| Main Lug Amps CU | :Â Â | 225 |
| Main Lug Wire Size | :Â Â | 6 AWG - 300 MCM |
| Main Lug Quantity | :Â Â | 1 |
| Branch Lug Amps CU | :Â Â | 175 |
| Branch Lug Wire Size | :Â Â | 14 - 2/0 AWG |
| Branch Lug Quantity | :Â Â | 3 |
| NEMA Rating | :Â Â | 1 Indoor, electrical protection |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 1 |
| Weight | :Â Â | 17.6 |
| Material | :Â Â | Steel |
| Size | :Â Â | 16.00x16.00x5.00 in |
| Color | :Â Â | Gray |
- Various numbers and sizes of combination knockouts are provided on all four sides: see Knockout Size and Spacing Table
- Hinged covers
- Mounting holes in back
- Includes single point ground lug
- Ground Splitter (ground bar) accessory available
Specifications
Height (H) :Â Â 406 Width (W) :Â Â 406 Depth (D) :Â Â 127 Protection Rating :Â Â NEMA Type 1 Finish :Â Â Powder Coated Color Code :Â Â ANSI 61 Thickness (T) :Â Â 1.52 Number of Wires :Â Â 4 Main Lug Amps CU :Â Â 225 Main Lug Wire Size :Â Â 6 AWG - 300 MCM Main Lug Quantity :Â Â 1 Branch Lug Amps CU :Â Â 175 Branch Lug Wire Size :Â Â 14 - 2/0 AWG Branch Lug Quantity :Â Â 3 NEMA Rating :Â Â 1 Indoor, electrical protection Modification Services :Â Â Yes Type Number :Â Â Type 1 Weight :Â Â 17.6 Material :Â Â Steel Size :Â Â 16.00x16.00x5.00 in Color :Â Â Gray - Instruction Manual
Instruction Manual - 87579785 - NAM-USInstruction Manual - 87579783 - NAM-US
Data SheetData Sheet - Spec-00271 - NAM-CAData Sheet - Spec-01343 - NAM-CA
CertificateCertificate - CERT-00269 - NAM-USCertificate - CE-UKCA-00008_L-Box_ProTek - NAM-US
DownloadsSpec Sheet
