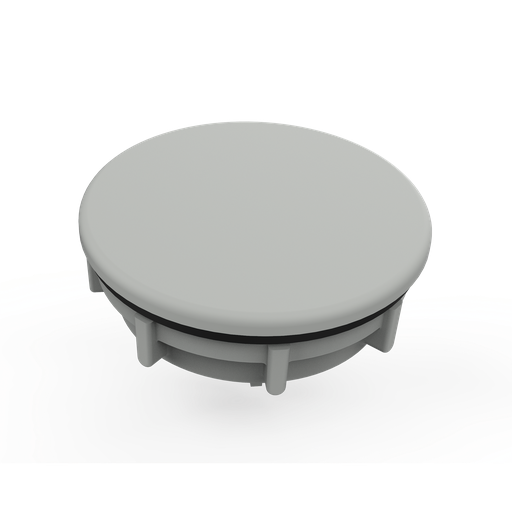

Hole seal 56x49x3mm
MFG #ASPB100125NM
$41.80Â /Â E
EACH
EACH
Product Description:
Designed for use in corrosive environments to seal extra pushbutton holes, conduit openings and knockout openings against dust, dirt, oil and water. These hole seals are suitable for sealing enclosure openings in industries such as petroleum and chemical processing, wastewater processing, pulp and paper, outdoor monitoring and any other industry exposed to harsh environments.
HESCO Part Number
HFASPB100125NM
UPC
783510163082
Manufacturer Part Number
ASPB100125NM
Manufacturer
Hoffman
Hole seal 56x49x3mm
MFG #ASPB100125NM
Product Description:
Designed for use in corrosive environments to seal extra pushbutton holes, conduit openings and knockout openings against dust, dirt, oil and water. These hole seals are suitable for sealing enclosure openings in industries such as petroleum and chemical processing, wastewater processing, pulp and paper, outdoor monitoring and any other industry exposed to harsh environments.
HESCO Part Number
HFASPB100125NM
UPC
783510163082
Manufacturer Part Number
ASPB100125NM
Manufacturer
Hoffman
$41.80Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Innovative 3-in-1 self-centering design reduces inventory requirements; 3 models cover 9 common industry cutouts ranging from 1/2 inch (13mm) to 2-1/2 inch (64mm)
- Non-metallic construction provides superior corrosion resistance for reliability in harsh environments
- UV stabilized; ideal for direct sunlight (avoids fiberbloom associated with fiberglass)
- Chemically resistant to a broad range of chemicals
- Durable and impact resistant; resists cracking
- Sold in quantities of 2 per catalog number
- Cost-effective alternative to stainless steel
- Polyester material has a UL 94 rating of 5VA
- Easy to install; no tools required
- Thread and nut are constructed of non-glass-filled polyester
- Oil-resistant gasket included
Specifications
| Product Family | :Â Â | Hol-Sealers |
| Finish | :Â Â | Textured |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 3 |
| Outside Diameter | :Â Â | 56 |
| Torque (TQ) | :Â Â | 20 |
| Modification Services | :Â Â | Yes |
| Weight | :Â Â | 0.18 |
| Works With | :Â Â | NEMA & IEC |
| Sub Brand | :Â Â | Hol-Sealers |
| Material | :Â Â | Plastic |
| Size | :Â Â | 2.19 Dia. in |
- Innovative 3-in-1 self-centering design reduces inventory requirements; 3 models cover 9 common industry cutouts ranging from 1/2 inch (13mm) to 2-1/2 inch (64mm)
- Non-metallic construction provides superior corrosion resistance for reliability in harsh environments
- UV stabilized; ideal for direct sunlight (avoids fiberbloom associated with fiberglass)
- Chemically resistant to a broad range of chemicals
- Durable and impact resistant; resists cracking
- Sold in quantities of 2 per catalog number
- Cost-effective alternative to stainless steel
- Polyester material has a UL 94 rating of 5VA
- Easy to install; no tools required
- Thread and nut are constructed of non-glass-filled polyester
- Oil-resistant gasket included
Specifications
Product Family :Â Â Hol-Sealers Finish :Â Â Textured Color :Â Â Light Gray Color Code :Â Â RAL 7035 Thickness (T) :Â Â 3 Outside Diameter :Â Â 56 Torque (TQ) :Â Â 20 Modification Services :Â Â Yes Weight :Â Â 0.18 Works With :Â Â NEMA & IEC Sub Brand :Â Â Hol-Sealers Material :Â Â Plastic Size :Â Â 2.19 Dia. in - Certificate
Certificate - CERT-00104 - NAM-USCertificate - CE-UKCA-00088_Accy-WM-4-4X - NAM-US
Data SheetData Sheet - Spec-00182 - NAM-CAData Sheet - Spec-01342 - NAM-CA
DownloadsSpec Sheet
Instruction ManualInstruction Manual - 87929419 - NAM-US
