Swivel Tilt for Pedestal, 5.81x4.00x4.00, Anodized, Aluminum
MFG #AST44
$1,471.00Â /Â E
EACH
EACH
Product Description:

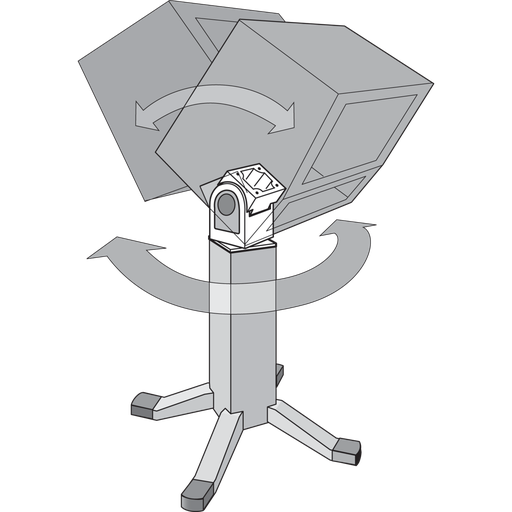

Accessory to rotate and tilt HMI enclosure attached to a Pedestal for optimal operating position. This Swivel Tilt for Pedestal, AST44 item measures 5.81x4.00x4.00 inches with a material of Aluminum.
HESCO Part Number
HFAST44
UPC
783510377908
Manufacturer Part Number
AST44
Manufacturer
Hoffman
Swivel Tilt for Pedestal, 5.81x4.00x4.00, Anodized, Aluminum
MFG #AST44
Product Description:
Accessory to rotate and tilt HMI enclosure attached to a Pedestal for optimal operating position. This Swivel Tilt for Pedestal, AST44 item measures 5.81x4.00x4.00 inches with a material of Aluminum.
HESCO Part Number
HFAST44
UPC
783510377908
Manufacturer Part Number
AST44
Manufacturer
Hoffman
$1,471.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Tilt allows forward and backward movement up to 30 degrees from horizontal
- Swivel allows 350-degree maximum rotation
- Integral stops at 30-degree increments between 60 degrees and 180 degrees of rotation
- Hardware and gasket to attach enclosure are included
- Do not use the swivel between an overhead support and an enclosure
Specifications
| Height (H) | :Â Â | 148 |
| Width (W) | :Â Â | 102 |
| Depth (D) | :Â Â | 102 |
| Finish | :Â Â | Anodized |
| Thickness (T) | :Â Â | 3.81 |
| Max Enclosure Size (A x B x C) | :Â Â | 24.00 x 24.00 x 16.00 |
| Max Load, Including Enclosure | :Â Â | 75 |
| Modification Services | :Â Â | Yes |
| Weight | :Â Â | 6.2 |
| Material | :Â Â | Aluminum |
| Size | :Â Â | 5.81x4.00x4.00 in |
