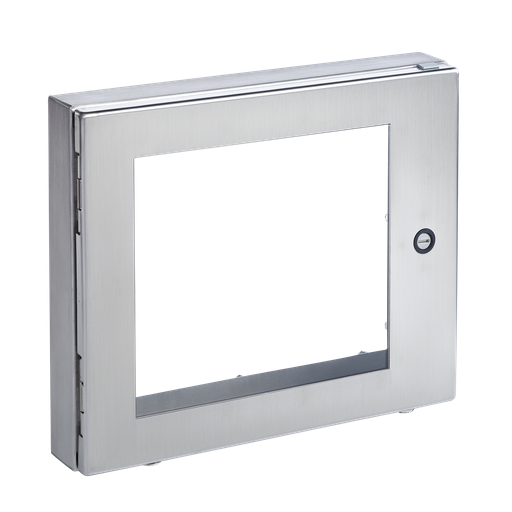

Deep-Hinged Window Kit Type 4 and 4X, 22.19x26.14, SS Type 316
MFG #AWDH2430N4SS
$4,215.00Â /Â E
EACH
EACH
Product Description:
Deep Hinged Wdw Kit provide protection, visibility and easy access to display equipment. This Deep-Hinged Window Kit Type 4 and 4X, AWDH2430N4SS item measures 22.19x26.14 inches with a material of SS Type 316.
HESCO Part Number
HFAWDH2430N4SS
UPC
783510130213
Manufacturer Part Number
AWDH2430N4SS
Manufacturer
Hoffman
Deep-Hinged Window Kit Type 4 and 4X, 22.19x26.14, SS Type 316
MFG #AWDH2430N4SS
Product Description:
Deep Hinged Wdw Kit provide protection, visibility and easy access to display equipment. This Deep-Hinged Window Kit Type 4 and 4X, AWDH2430N4SS item measures 22.19x26.14 inches with a material of SS Type 316.
HESCO Part Number
HFAWDH2430N4SS
UPC
783510130213
Manufacturer Part Number
AWDH2430N4SS
Manufacturer
Hoffman
$4,215.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Quarter-turn latches for quick access
- 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
- 2.5-in. (64-mm) deep to allow for deep controls
- Built-in gasket compression stop on back of window kit facilitates flush mounting
- Designed for either left or right hinging
- Includes mounting template and mounting hardware
- Easy-to-remove clip-style hinge pin
- Optional Concept handles can be purchased separately to replace the standard quarter-turn latches
Specifications
| Height (H) | :Â Â | 610 |
| Width (W) | :Â Â | 762 |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 1.9 |
| Window Size (M x N) | :Â Â | 18.68 x 20.22 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 4X |
| IP Rating | :Â Â | IP66 |
| NEMA Rating | :Â Â | 4 Watertight |
| Weight | :Â Â | 23.6 |
| Works With | :Â Â | NEMA & IEC |
| Material | :Â Â | 316L Stainless steel |
| Size | :Â Â | 22.19 x 26.14 in |
- Quarter-turn latches for quick access
- 0.25-in. (6-mm) thick, clear polycarbonate windows for easy viewing
- 2.5-in. (64-mm) deep to allow for deep controls
- Built-in gasket compression stop on back of window kit facilitates flush mounting
- Designed for either left or right hinging
- Includes mounting template and mounting hardware
- Easy-to-remove clip-style hinge pin
- Optional Concept handles can be purchased separately to replace the standard quarter-turn latches
Specifications
Height (H) :Â Â 610 Width (W) :Â Â 762 Finish :Â Â Brushed #4 Thickness (T) :Â Â 1.9 Window Size (M x N) :Â Â 18.68 x 20.22 Modification Services :Â Â Yes Type Number :Â Â Type 4X IP Rating :Â Â IP66 NEMA Rating :Â Â 4 Watertight Weight :Â Â 23.6 Works With :Â Â NEMA & IEC Material :Â Â 316L Stainless steel Size :Â Â 22.19 x 26.14 in - Instruction Manual
Instruction Manual - 89118913 - NAM-USInstruction Manual - 87574391 - NAM-US
CertificateCertificate - CERT-00031 - NAM-USCertificate - CE-UKCA-00087_Accy-Enclosure-4-4X - NAM-US
Data SheetData Sheet - Spec-00477 - NAM-CAData Sheet - Spec-01344 - NAM-CA
DownloadsSpec Sheet
