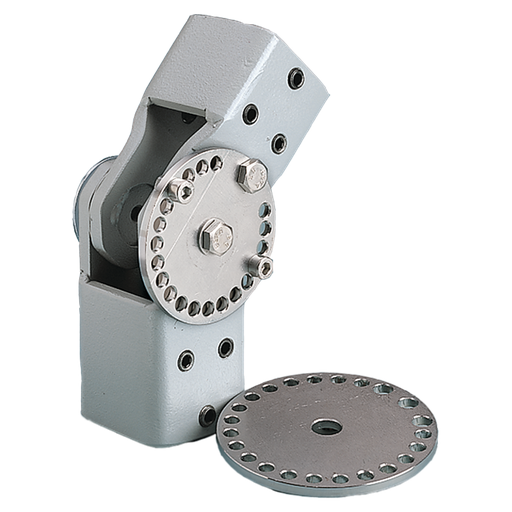

Compact Series 4 Rotation Limiter, fits 80sq,80x140mm , Steel
MFG #CCS814RL
$291.00Â /Â E
EACH
EACH
Product Description:
For limiting rotation of joints which rotate 180 degrees providing stops in 15-degree increments. This Compact Series 4 Rotation Limiter, CCS814RL item fits 80sq with a material of Steel colored 0x140mm .
HESCO Part Number
HFCCS814RL
UPC
783510681708
Manufacturer Part Number
CCS814RL
Manufacturer
Hoffman
Compact Series 4 Rotation Limiter, fits 80sq,80x140mm , Steel
MFG #CCS814RL
Product Description:
For limiting rotation of joints which rotate 180 degrees providing stops in 15-degree increments. This Compact Series 4 Rotation Limiter, CCS814RL item fits 80sq with a material of Steel colored 0x140mm .
HESCO Part Number
HFCCS814RL
UPC
783510681708
Manufacturer Part Number
CCS814RL
Manufacturer
Hoffman
$291.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Heavy-duty steel disk that attaches to the pivot point of wall and intermediate joints
- Moveable stop pins provide adjustment
- Assembled Compact Series 4 HMI Arm System has a max weight load of 337 lb. (153.2 kg)
Specifications
| Height (H) | :Â Â | 80 |
| Width (W) | :Â Â | 140 |
| Protection Rating | :Â Â | IP55 |
| Finish | :Â Â | Powder Coated |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 12 |
| Product Family | :Â Â | Compact Series 4 |
| Modification Services | :Â Â | Yes |
| Weight | :Â Â | 1.26 |
| Sub Brand | :Â Â | Compact |
| Material | :Â Â | Steel |
| Size | :Â Â | fits 80sq,80x140mm in |
