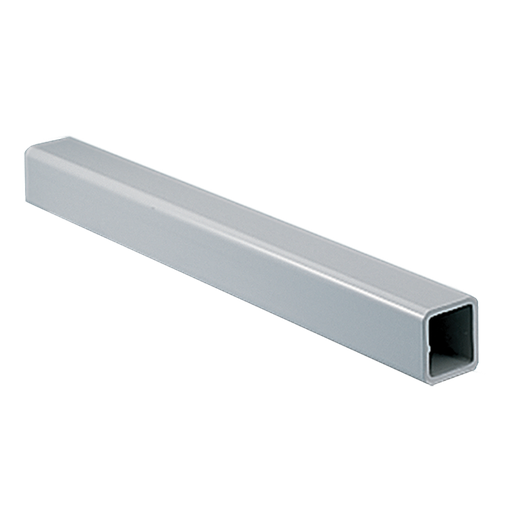

Compact Series 4 Tube, 991x80x80mm, Lt Gray, Steel
MFG #CCS8T10
$487.00Â /Â E
EACH
EACH
Product Description:
For connecting the components together in the Compact Series 4 Pendant Arm System. This Compact Series 4 Tube, CCS8T10 item measures 991x80x80mm with a material of Lt Gray, Steel.
HESCO Part Number
HFCCS8T10
UPC
783510681005
Manufacturer Part Number
CCS8T10
Manufacturer
Hoffman
Compact Series 4 Tube, 991x80x80mm, Lt Gray, Steel
MFG #CCS8T10
Product Description:
For connecting the components together in the Compact Series 4 Pendant Arm System. This Compact Series 4 Tube, CCS8T10 item measures 991x80x80mm with a material of Lt Gray, Steel.
HESCO Part Number
HFCCS8T10
UPC
783510681005
Manufacturer Part Number
CCS8T10
Manufacturer
Hoffman
$487.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Square and rectangular tubes are cold-formed, hollow, welded steel with 5-mm wall thickness available in various lengths
- Connection components fastened to support arm with set screws
- Assembled Compact Series 4 HMI Arm System has a max weight load of 337 lb. (153.2 kg)
Specifications
| Height (H) | :Â Â | 80 |
| Width (W) | :Â Â | 80 |
| Depth (D) | :Â Â | 1,000 |
| Protection Rating | :Â Â | IP55 |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 4.8 |
| Product Family | :Â Â | Compact Series 4 |
| Length (L) | :Â Â | 39 |
| Inside Cross Section | :Â Â | 7.6 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP55 |
| Weight | :Â Â | 23.6 |
| Sub Brand | :Â Â | Compact |
| Material | :Â Â | Steel |
| Size | :Â Â | 80 sq. mm |
| Color | :Â Â | LtGray |
Data Sheet
Data Sheet - Spec-00352 - NAM-CA
Certificate
Certificate - CE-UKCA-00021_HMI-Compact - NAM-US
Downloads
Spec Sheet
Data Sheet - Spec-00352 - NAM-CACertificate
Certificate - CE-UKCA-00021_HMI-Compact - NAM-USDownloads
Spec Sheet- Square and rectangular tubes are cold-formed, hollow, welded steel with 5-mm wall thickness available in various lengths
- Connection components fastened to support arm with set screws
- Assembled Compact Series 4 HMI Arm System has a max weight load of 337 lb. (153.2 kg)
Specifications
Height (H) :Â Â 80 Width (W) :Â Â 80 Depth (D) :Â Â 1,000 Protection Rating :Â Â IP55 Finish :Â Â Powder Coated Color Code :Â Â RAL 7035 Thickness (T) :Â Â 4.8 Product Family :Â Â Compact Series 4 Length (L) :Â Â 39 Inside Cross Section :Â Â 7.6 Modification Services :Â Â Yes Type Number :Â Â Type 12 IP Rating :Â Â IP55 Weight :Â Â 23.6 Sub Brand :Â Â Compact Material :Â Â Steel Size :Â Â 80 sq. mm Color :Â Â LtGray - Data SheetData Sheet - Spec-00352 - NAM-CA
CertificateCertificate - CE-UKCA-00021_HMI-Compact - NAM-US
DownloadsSpec Sheet
