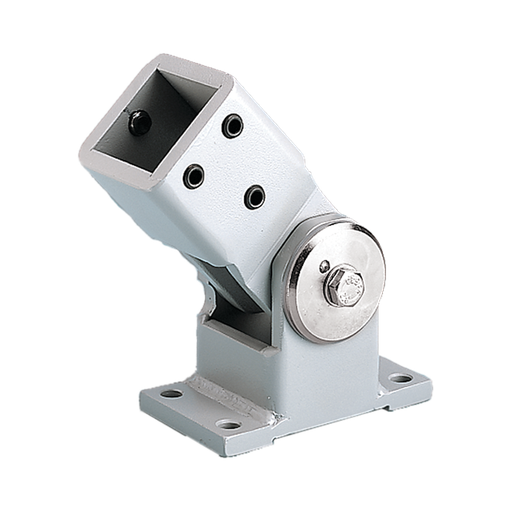

Compact Series 4 Wall Joint, fits 80x80mm, Lt Gray, Steel
MFG #CCS8WJRLG
$1,798.00Â /Â E
EACH
EACH
Product Description:
For mounting the suspension system to vertical surface allowing tube to extend horizontally and swivel. This Compact Series 4 Wall Joint, CCS8WJRLG item fits 80x80mm with a material of Steel colored Lt Gray.
HESCO Part Number
HFCCS8WJRLG
UPC
783510422592
Manufacturer Part Number
CCS8WJRLG
Manufacturer
Hoffman
Compact Series 4 Wall Joint, fits 80x80mm, Lt Gray, Steel
MFG #CCS8WJRLG
Product Description:
For mounting the suspension system to vertical surface allowing tube to extend horizontally and swivel. This Compact Series 4 Wall Joint, CCS8WJRLG item fits 80x80mm with a material of Steel colored Lt Gray.
HESCO Part Number
HFCCS8WJRLG
UPC
783510422592
Manufacturer Part Number
CCS8WJRLG
Manufacturer
Hoffman
$1,798.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Adjustable tension at pivot point
- Bellows with zipper, gasket and set screws are included
- Rotation limiter is optional and can be purchased separately
- Surface mounting fasteners are not provided
- Assembled Compact Series 4 HMI Arm System has a max weight load of 337 lb. (153.2 kg)
Specifications
| Height (H) | :Â Â | 80 |
| Width (W) | :Â Â | 80 |
| Protection Rating | :Â Â | IP55 |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 12 |
| Product Family | :Â Â | Compact Series 4 |
| Modification Services | :Â Â | Yes |
| Weight | :Â Â | 20.5 |
| Sub Brand | :Â Â | Compact |
| Material | :Â Â | Steel |
| Size | :Â Â | fits 80x80mm |
| Color | :Â Â | LtGray |
Certificate
Certificate - CE-UKCA-00021_HMI-Compact - NAM-US
Downloads
Spec Sheet
Instruction Manual
Instruction Manual - 21355001 - NAM-US
Data Sheet
Data Sheet - Spec-00352 - NAM-CA
