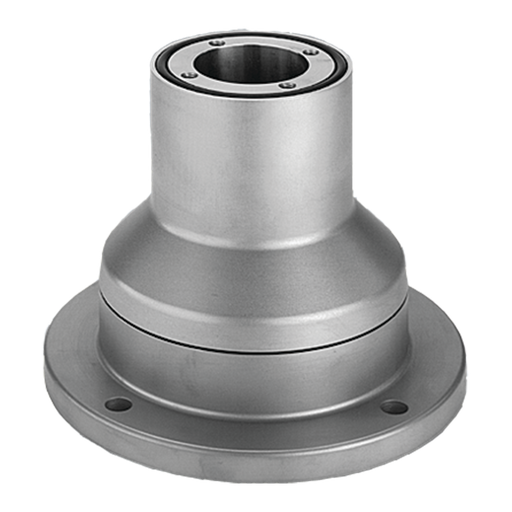

CS480 Swivel Base Bracket Coupling External, fits 48.3mm Tube, Brushed, SS304
MFG #CCSS48BBCRE
$2,186.00Â /Â E
EACH
EACH
Product Description:
For directly mounting the enclosure on horizontal surfaces enabling 340-degree enclosure rotation. This CS480 Swivel Base Bracket Coupling External, CCSS48BBCRE item fits 48.3mm Tube with a material of SS Type 304.
HESCO Part Number
HFCCSS48BBCRE
UPC
783510425197
Manufacturer Part Number
CCSS48BBCRE
Manufacturer
Hoffman
CS480 Swivel Base Bracket Coupling External, fits 48.3mm Tube, Brushed, SS304
MFG #CCSS48BBCRE
Product Description:
For directly mounting the enclosure on horizontal surfaces enabling 340-degree enclosure rotation. This CS480 Swivel Base Bracket Coupling External, CCSS48BBCRE item fits 48.3mm Tube with a material of SS Type 304.
HESCO Part Number
HFCCSS48BBCRE
UPC
783510425197
Manufacturer Part Number
CCSS48BBCRE
Manufacturer
Hoffman
$2,186.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Coupling can rotate 340 degrees with rotation stop
- Torque preset at factory
- Gasket and mounting hardware are included
- Surface mounting fasteners are not provided
- Assembled CS480 HMI Arm System has a max weight load of 89.6 lb. (40.7 kg)
Specifications
| Height (H) | :Â Â | 110 |
| Width (W) | :Â Â | 149 |
| Depth (D) | :Â Â | 149 |
| Protection Rating | :Â Â | IP66 |
| Finish | :Â Â | Brushed |
| Product Family | :Â Â | Compact CS480 |
| Modification Services | :Â Â | Yes |
| Weight | :Â Â | 10.1 |
| Sub Brand | :Â Â | Compact |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | fits 48.3mm Tube in |
Downloads
Spec Sheet
Data Sheet
Data Sheet - CS 480 Stainless Steel Pendant Arm System - NAM-CA
Instruction Manual
Instruction Manual - 87751248 - NAM-US
Certificate
Certificate - CE-UKCA-00085_HMI-Accy-Compact - NAM-US
