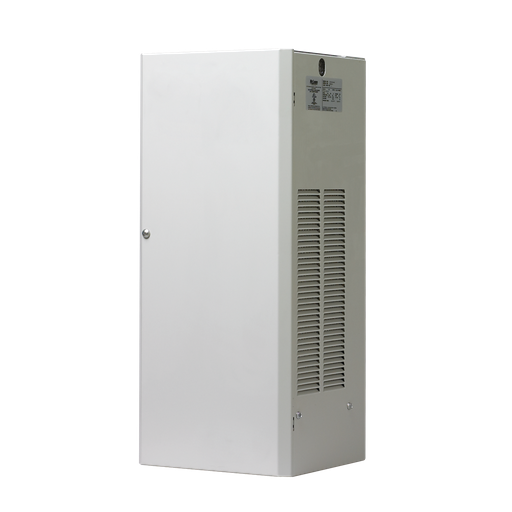

ProAir Harsh Environment Outdoor 3R CR23, 1600BTU 230V, Lt Gray, Steel
MFG #CR230226G030
$5,460.00Â /Â E
EACH
EACH
Product Description:
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Outdoor 3R CR23, CR230226G030 item is rated 1600BTU 230V with material of Steel colored Lt Gray.
HESCO Part Number
HFCR230226G030
UPC
783510453398
Manufacturer Part Number
CR230226G030
Manufacturer
Hoffman
ProAir Harsh Environment Outdoor 3R CR23, 1600BTU 230V, Lt Gray, Steel
MFG #CR230226G030
Product Description:
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Outdoor 3R CR23, CR230226G030 item is rated 1600BTU 230V with material of Steel colored Lt Gray.
HESCO Part Number
HFCR230226G030
UPC
783510453398
Manufacturer Part Number
CR230226G030
Manufacturer
Hoffman
$5,460.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
| Height (H) | :Â Â | 584 |
| Width (W) | :Â Â | 254 |
| Depth (D) | :Â Â | 222 |
| Nominal Voltage | :Â Â | 230 |
| Remote Access Control | :Â Â | No |
| Number of Phases | :Â Â | 1 |
| Nominal Capacity Btu/h | :Â Â | 1,733 |
| Nominal Capacity Watts | :Â Â | 508 |
| Max Current | :Â Â | 1.7 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | ProAir |
| Material | :Â Â | Mild Steel |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 1.21 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 62 |
| Sub Brand | :Â Â | ProAir |
| Model | :Â Â | Surface Mounted |
| Voltage Rating | :Â Â | 230 VAC |
| BTU Rating | :Â Â | 1,600 |
| Amperage Rating | :Â Â | 2.5 A |
| Power | :Â Â | 469 W |
| Frequency Rating | :Â Â | 50/60 Hz |
| Housing Material | :Â Â | Mild Steel |
| Operating Temperature | :Â Â | 131 deg F |
| Color | :Â Â | Lt Gray |
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
Height (H) :Â Â 584 Width (W) :Â Â 254 Depth (D) :Â Â 222 Nominal Voltage :Â Â 230 Remote Access Control :Â Â No Number of Phases :Â Â 1 Nominal Capacity Btu/h :Â Â 1,733 Nominal Capacity Watts :Â Â 508 Max Current :Â Â 1.7 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â ProAir Material :Â Â Mild Steel Finish :Â Â Powder Coated Color Code :Â Â RAL 7035 Thickness (T) :Â Â 1.21 NEMA Rating :Â Â 12 Indoor, dust-resistant Weight :Â Â 62 Sub Brand :Â Â ProAir Model :Â Â Surface Mounted Voltage Rating :Â Â 230 VAC BTU Rating :Â Â 1,600 Amperage Rating :Â Â 2.5 A Power :Â Â 469 W Frequency Rating :Â Â 50/60 Hz Housing Material :Â Â Mild Steel Operating Temperature :Â Â 131 deg F Color :Â Â Lt Gray - Data Sheet
Data Sheet - CR Series Spec-00614 (1) - NAM-CAData Sheet - Spec-00796 - NAM-US
Instruction ManualInstruction Manual - 89112522 - NAM-USInstruction Manual - 89246229_A - NAM-USInstruction Manual - 89146962 - EMEA-EUR
DownloadsSpec Sheet
CertificateCertificate - CE-UKCA-00106_AC-Harsh - NAM-US
