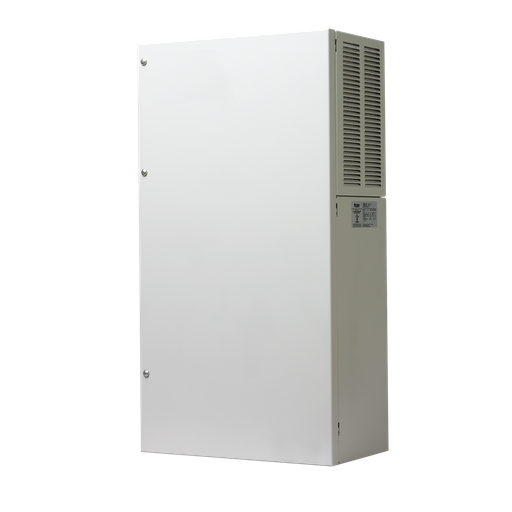

ProAir Harsh Environment Outdoor 3R CR29, 4000BTU 230V, Lt Gray, Steel
MFG #CR290426G022
$6,636.00Â /Â E
EACH
EACH
Product Description:
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Outdoor 3R CR29, CR290426G022 item is rated 4000BTU 230V with material of Steel colored Lt Gray.
HESCO Part Number
HFCR290426G022
UPC
783510453794
Manufacturer Part Number
CR290426G022
Manufacturer
Hoffman
ProAir Harsh Environment Outdoor 3R CR29, 4000BTU 230V, Lt Gray, Steel
MFG #CR290426G022
Product Description:
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Outdoor 3R CR29, CR290426G022 item is rated 4000BTU 230V with material of Steel colored Lt Gray.
HESCO Part Number
HFCR290426G022
UPC
783510453794
Manufacturer Part Number
CR290426G022
Manufacturer
Hoffman
$6,636.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
| Height (H) | :Â Â | 749 |
| Width (W) | :Â Â | 400 |
| Depth (D) | :Â Â | 219 |
| Nominal Voltage | :Â Â | 230 |
| Remote Access Control | :Â Â | No |
| Number of Phases | :Â Â | 1 |
| Nominal Capacity Btu/h | :Â Â | 4,000 |
| Nominal Capacity Watts | :Â Â | 1,172 |
| Max Current | :Â Â | 4.9 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | ProAir |
| Material | :Â Â | Mild Steel |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 1.21 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 121 |
| Sub Brand | :Â Â | ProAir |
| Model | :Â Â | Surface Mounted |
| Voltage Rating | :Â Â | 230 VAC |
| BTU Rating | :Â Â | 4,000 |
| Amperage Rating | :Â Â | 4.9 A |
| Power | :Â Â | 1172 W |
| Frequency Rating | :Â Â | 50/60 Hz |
| Housing Material | :Â Â | Mild Steel |
| Operating Temperature | :Â Â | 131 deg F |
| Color | :Â Â | Lt Gray |
