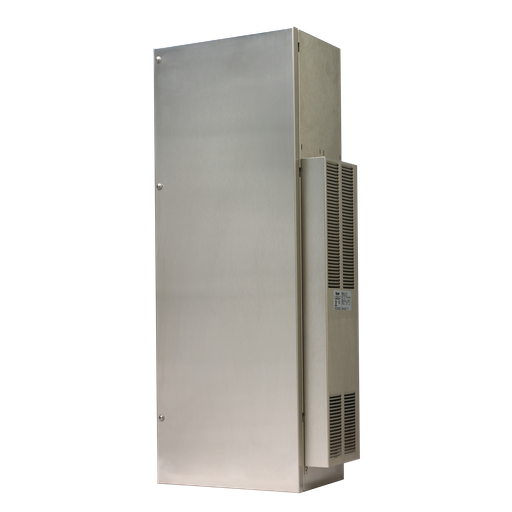

ProAir Harsh Environment Indoor/Outdoor 4X CR43, 8000BTU 460V 1PH, Brushed, SS304
MFG #CR430846G401
$12,321.00Â /Â E
EACH
EACH
Product Description:
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Indoor/Outdoor 4X CR43, CR430846G401 item is rated 8000BTU 460V 1PH with material of SS304 finish Brushed.
HESCO Part Number
HFCR430846G401
UPC
783510228439
Manufacturer Part Number
CR430846G401
Manufacturer
Hoffman
ProAir Harsh Environment Indoor/Outdoor 4X CR43, 8000BTU 460V 1PH, Brushed, SS304
MFG #CR430846G401
Product Description:
ProAir Harsh Environment Air Conditioners cool components in corrosive environments on ambient side. This ProAir Harsh Environment Indoor/Outdoor 4X CR43, CR430846G401 item is rated 8000BTU 460V 1PH with material of SS304 finish Brushed.
HESCO Part Number
HFCR430846G401
UPC
783510228439
Manufacturer Part Number
CR430846G401
Manufacturer
Hoffman
$12,321.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Easy maintenance: hinged front cover allows quick access to all components; condenser coil can be cleaned while unit is still mounted to the cabinet
- Smooth surface with minimal use of visible fasteners
- Cleanable reusable aluminum mesh filter protects coils for maximum cooling performance
- R134a, R513A or R407C Refrigerant
- Models for 115, 230 and 460 single phase VAC power input
- Operating temperature range from -40 F/-40 C to 131 F/55 C (with optional low-ambient package)
- Reliable mechanical thermostat located behind the filter of the unit
- Robust reciprocating compressor
- Low-carbon mild-steel sheet-metal cover for rugged factory and outdoor environments
- High-performance fans and blowers designed for densely packed enclosures
- Easy-mount flanges for simple installation
- Every unit functionally tested before shipping
- Standard Indoor Air Conditioner models also include Electro-Mechanical Thermostat and Surge Suppressor
- Mounting hardware, gaskets and user manual furnished with the unit
Specifications
| Height (H) | :Â Â | 1,100 |
| Width (W) | :Â Â | 400 |
| Depth (D) | :Â Â | 260 |
| Nominal Voltage | :Â Â | 460 |
| Remote Access Control | :Â Â | No |
| Number of Phases | :Â Â | 1 |
| Nominal Capacity Btu/h | :Â Â | 8,000 |
| Nominal Capacity Watts | :Â Â | 2,344 |
| Operating Temperature | :Â Â | -40 |
| Max Current | :Â Â | 2.5 |
| Protection Rating | :Â Â | NEMA Type 4X |
| Product Family | :Â Â | ProAir |
| Material | :Â Â | Stainless Steel 304 |
| Finish | :Â Â | Brushed #3 |
| Thickness (T) | :Â Â | 1.21 |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
| Weight | :Â Â | 154 |
| Sub Brand | :Â Â | ProAir |
| Voltage Rating | :Â Â | 460 V |
| BTU Rating | :Â Â | 8,000 |
| Amperage Rating | :Â Â | 2.5/2.5 A |
| Power | :Â Â | 958/1182 W |
| Frequency Rating | :Â Â | 50/60 Hz |
| Phase | :Â Â | 1 |
| Color | :Â Â | Gray |
Data Sheet
Data Sheet - CR Series Spec-00614 (1) - NAM-CA
Data Sheet - Spec-00796 - NAM-US
Downloads
Spec Sheet
Instruction Manual
Instruction Manual - 10-1008-130 - NAM-US
Instruction Manual - 10-1008-130_rev_L - NAM-US
Instruction Manual - 89146959 - EMEA-EUR
Certificate
Certificate - CE-UKCA-00158_AC-CR23_29_43 - NAM-US
