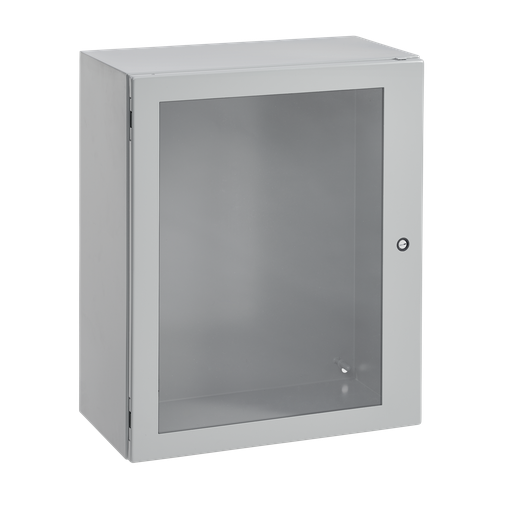

Concept Window-Door Enclosure, 20.00x20.00x12.00, Gray, Steel
MFG #CSD202012W
$927.00 / E
EACH
EACH
Product Description:
Concept Window Door Enclosures offer view of internal components and controls for machine control. This Concept Window-Door Enclosure, CSD202012W item measures 20.00x20.00x12.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFCSD202012W
UPC
783510778903
Manufacturer Part Number
CSD202012W
Manufacturer
Hoffman
Concept Window-Door Enclosure, 20.00x20.00x12.00, Gray, Steel
MFG #CSD202012W
Product Description:
Concept Window Door Enclosures offer view of internal components and controls for machine control. This Concept Window-Door Enclosure, CSD202012W item measures 20.00x20.00x12.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFCSD202012W
UPC
783510778903
Manufacturer Part Number
CSD202012W
Manufacturer
Hoffman
$927.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Grounding stud on body
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
- Clear polycarbonate window flush with door surface
Specifications
| Height (H) | : | 508 |
| Width (W) | : | 508 |
| Depth (D) | : | 305 |
| Protection Rating | : | NEMA Type 12 |
| Product Family | : | Concept |
| Finish | : | Powder Coated |
| Color Code | : | ANSI 61 |
| Body Thickness | : | 1.52 |
| Door Thickness | : | 1.9 |
| Window Size (M x N) | : | 16.49 x 15.30 |
| Mounting (G x H) | : | 470 x 470 |
| Latch Quantity | : | 1 |
| Modification Services | : | Yes |
| Type Number | : | Type 4 |
| IP Rating | : | IP66 |
| Weight | : | 35.3 |
| Sub Brand | : | Concept |
| Material | : | Steel |
| Size | : | 20.00x20.00x12.00 in |
| Color | : | ANSI 61 Gray |
| NEMA Rating | : | 12 Indoor, dust-resistant |
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Grounding stud on body
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Three-point latch system on enclosures where A is equal to or greater than 42-in. with quarter-turn, slotted latch
- Clear polycarbonate window flush with door surface
Specifications
Height (H) : 508 Width (W) : 508 Depth (D) : 305 Protection Rating : NEMA Type 12 Product Family : Concept Finish : Powder Coated Color Code : ANSI 61 Body Thickness : 1.52 Door Thickness : 1.9 Window Size (M x N) : 16.49 x 15.30 Mounting (G x H) : 470 x 470 Latch Quantity : 1 Modification Services : Yes Type Number : Type 4 IP Rating : IP66 Weight : 35.3 Sub Brand : Concept Material : Steel Size : 20.00x20.00x12.00 in Color : ANSI 61 Gray NEMA Rating : 12 Indoor, dust-resistant - Data Sheet
Data Sheet - Spec-00286 - NAM-CAData Sheet - Spec-00775 - NAM-USData Sheet - Spec-01346 - NAM-CA
CertificateCertificate - CERT-00222 - NAM-USCertificate - CE-UKCA-00036_Concept - NAM-US
DownloadsSpec Sheet
Instruction ManualInstruction Manual - 64303001 - NAM-US
