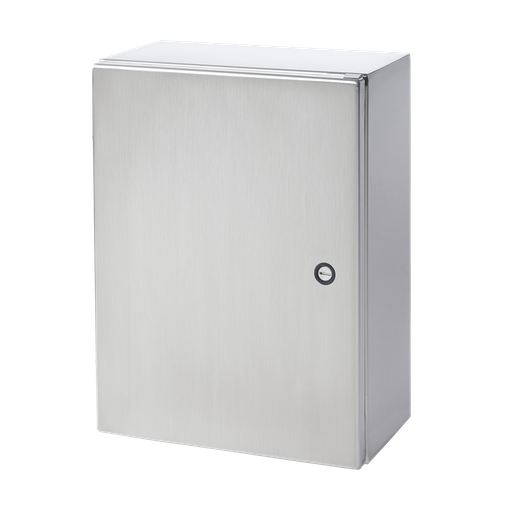

Concept Wallmount 1/4-Turn Latch Type 4X, 24x20x8, Brushed, Stainless 304
MFG #CSD24208SS
$2,102.00Â /Â E
EACH
EACH
Product Description:
Concept SS enclosures are designed for indoor or outdoor applications in corrosion environments. This Concept Wallmount 1/4-Turn Latch Type 4X, CSD24208SS item measures 24x20x8 inch with a material of Stainless 304 finish Brushed.
HESCO Part Number
HFCSD24208SS
UPC
783510784201
Manufacturer Part Number
CSD24208SS
Manufacturer
Hoffman
Concept Wallmount 1/4-Turn Latch Type 4X, 24x20x8, Brushed, Stainless 304
MFG #CSD24208SS
Product Description:
Concept SS enclosures are designed for indoor or outdoor applications in corrosion environments. This Concept Wallmount 1/4-Turn Latch Type 4X, CSD24208SS item measures 24x20x8 inch with a material of Stainless 304 finish Brushed.
HESCO Part Number
HFCSD24208SS
UPC
783510784201
Manufacturer Part Number
CSD24208SS
Manufacturer
Hoffman
$2,102.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hidden hinges promote clean aesthetic appearance
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
- Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
- Quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
Specifications
| Height (H) | :Â Â | 610 |
| Width (W) | :Â Â | 508 |
| Depth (D) | :Â Â | 203 |
| Protection Rating | :Â Â | NEMA Type 3R |
| Product Family | :Â Â | Concept |
| Finish | :Â Â | Brushed #4 |
| Body Thickness | :Â Â | 1.59 |
| Door Thickness | :Â Â | 1.59 |
| Mounting (G x H) | :Â Â | 572 x 470 |
| Latch Quantity | :Â Â | 1 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 34 |
| Latch Type | :Â Â | Quarter-Turn |
| Sub Brand | :Â Â | Concept |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 24.00x20.00x8.00 in |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 316 stainless steel hidden hinges promote clean aesthetic appearance
- Corner formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door (except when B = 12 inch (305mm)) for thermoplastic data pocket
- Provision on door (except when B = 12 inch (305mm)) for optional doorstop kit
- Quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting hole
Specifications
Height (H) :Â Â 610 Width (W) :Â Â 508 Depth (D) :Â Â 203 Protection Rating :Â Â NEMA Type 3R Product Family :Â Â Concept Finish :Â Â Brushed #4 Body Thickness :Â Â 1.59 Door Thickness :Â Â 1.59 Mounting (G x H) :Â Â 572 x 470 Latch Quantity :Â Â 1 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 34 Latch Type :Â Â Quarter-Turn Sub Brand :Â Â Concept Material :Â Â Stainless Steel Size :Â Â 24.00x20.00x8.00 in NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Data Sheet
Data Sheet - Spec-00002 - NAM-CAData Sheet - Spec-00828 - NAM-USData Sheet - Spec-01273 - NAM-CA
CertificateCertificate - CERT-00031 - NAM-USCertificate - CE-UKCA-00036_Concept - NAM-US
Instruction ManualInstruction Manual - 64303001 - NAM-US
DownloadsSpec Sheet
