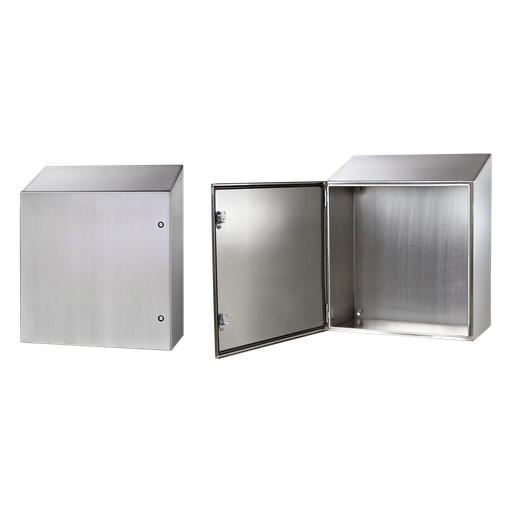

Concept Sloped Top Wallmount 1/4-Turn Latch Type 4X, 24x20x8, Brushed, SS 304
MFG #CSD24208SSST
$2,272.00Â /Â E
EACH
EACH
Product Description:
Concept Sloped Top wallmount enclosures for indoor/outdoor applications in corrosive environments. This Concept Sloped Top Wallmount 1/4-Turn Latch Type 4X, CSD24208SSST item measures 24x20x8 in. with a material of SS 304, Brushed.
HESCO Part Number
HFCSD24208SSST
UPC
783510260118
Manufacturer Part Number
CSD24208SSST
Manufacturer
Hoffman
Concept Sloped Top Wallmount 1/4-Turn Latch Type 4X, 24x20x8, Brushed, SS 304
MFG #CSD24208SSST
Product Description:
Concept Sloped Top wallmount enclosures for indoor/outdoor applications in corrosive environments. This Concept Sloped Top Wallmount 1/4-Turn Latch Type 4X, CSD24208SSST item measures 24x20x8 in. with a material of SS 304, Brushed.
HESCO Part Number
HFCSD24208SSST
UPC
783510260118
Manufacturer Part Number
CSD24208SSST
Manufacturer
Hoffman
$2,272.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- 20 degree sloped top prevents pooling of liquids and accumulation of other debris
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Type 304 stainless steel hidden hinges promote clean aesthetic appearance (two hinges on models under 36 in. in height; three hinges for models 36 in. and taller)
- Corner-formed doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door for thermoplastic data pocket
- Provision on door for optional door stop kit
- Seams continuously welded and ground smooth
- Stainless steel quarter-turn latches furnished with flush slotted insert
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel-mounting nuts, panel-grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Specifications
| Height (H) | :Â Â | 610 |
| Width (W) | :Â Â | 508 |
| Depth (D) | :Â Â | 203 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | Concept |
| Finish | :Â Â | Brushed #4 |
| Body Thickness | :Â Â | 1.59 |
| Door Thickness | :Â Â | 1.59 |
| Mounting (H x G) | :Â Â | 572 x 470 |
| Latch Quantity | :Â Â | 1 |
| Modification Services | :Â Â | Yes |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 40 |
| Sub Brand | :Â Â | Concept |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 24.000 x20.000 x8.0000 in |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
