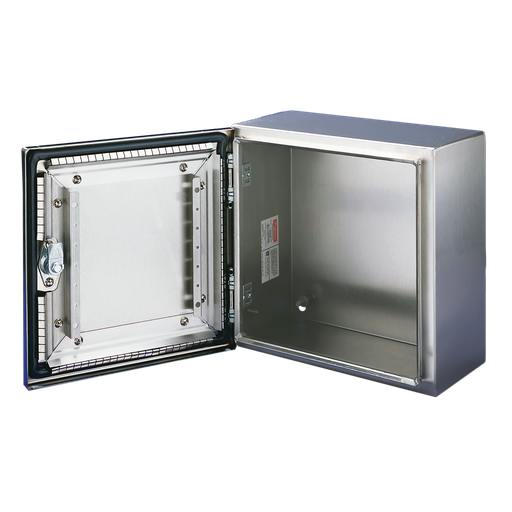

Concept Wallmount EMC 1/4-Turn Latch Type 4X, 24x24x8, Brushed, SS 304
MFG #CSD24248EMCSS
$4,073.00Â /Â E
EACH
EACH
Product Description:
Concept EMC Type 4X Enclosures protect components from stray electromagnetic interference signals. This Concept Wallmount EMC 1/4-Turn Latch Type 4X, CSD24248EMCSS item measures 24x24x8 in. with a material of SS 304, Brushed.
HESCO Part Number
HFCSD24248EMCSS
UPC
783510259990
Manufacturer Part Number
CSD24248EMCSS
Manufacturer
Hoffman
Concept Wallmount EMC 1/4-Turn Latch Type 4X, 24x24x8, Brushed, SS 304
MFG #CSD24248EMCSS
Product Description:
Concept EMC Type 4X Enclosures protect components from stray electromagnetic interference signals. This Concept Wallmount EMC 1/4-Turn Latch Type 4X, CSD24248EMCSS item measures 24x24x8 in. with a material of SS 304, Brushed.
HESCO Part Number
HFCSD24248EMCSS
UPC
783510259990
Manufacturer Part Number
CSD24248EMCSS
Manufacturer
Hoffman
$4,073.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Minimum-width body flange provides maximum body opening
- External formed 90-degree body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Easy-to-remove clip-style hinge pins
- Removable corner formed door
- Seamless foam-in-place gasket adjacent to spring finger EMC gasket
- Quarter-turn latches with flush slotted insert
- Self-grounding latch system with double seal
- Integral body grounding stud
- Furnished hardware kit includes panel mounting nuts, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Specifications
| Height (H) | :Â Â | 610 |
| Width (W) | :Â Â | 610 |
| Depth (D) | :Â Â | 203 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | Concept |
| Finish | :Â Â | Brushed #4 |
| Body Thickness | :Â Â | 1.59 |
| Door Thickness | :Â Â | 1.98 |
| Mounting (G x H) | :Â Â | 572 x 572 |
| Latch Quantity | :Â Â | 2 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 4X |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 41.4 |
| Sub Brand | :Â Â | Concept |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 24.00x24.00x8.00 in |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
