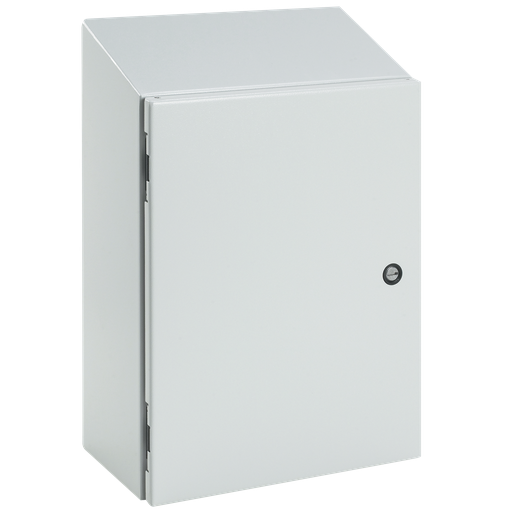

Concept Sloped-Top Enclosure Type 4, 30.00x24.00x10.00, Light Gray, Mild Steel
MFG #CSD302410ST
$910.00Â /Â E
EACH
EACH
Product Description:
Concept Sloped-top enclosures are ideal for machine control applications. This Concept Sloped-Top Enclosure Type 4, CSD302410ST item measures 30.00x24.00x10.00 inches with a material of Steel colored Lt Gray.
HESCO Part Number
HFCSD302410ST
UPC
783510144654
Manufacturer Part Number
CSD302410ST
Manufacturer
Hoffman
Concept Sloped-Top Enclosure Type 4, 30.00x24.00x10.00, Light Gray, Mild Steel
MFG #CSD302410ST
Product Description:
Concept Sloped-top enclosures are ideal for machine control applications. This Concept Sloped-Top Enclosure Type 4, CSD302410ST item measures 30.00x24.00x10.00 inches with a material of Steel colored Lt Gray.
HESCO Part Number
HFCSD302410ST
UPC
783510144654
Manufacturer Part Number
CSD302410ST
Manufacturer
Hoffman
$910.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Bonding provision on door and body
- Panel-mounting studs fit optional Concept panels and other accessories
- Corner-formed door
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Illustrated instruction sheet
- External formed body flange channels away liquids
- Door opens 210 degrees
- Seamless foam-in-place gasket
- Quarter-turn latches
- Mounting holes in back of body for optional external mounting brackets
- Larger sizes support 19-in. rack mounting
- Door alignment device on doors wider than 30-in.
- Minimum-width body flange provides maximum door opening
- 20-degree sloped top
Specifications
| Height (H) | :Â Â | 762 |
| Width (W) | :Â Â | 610 |
| Depth (D) | :Â Â | 254 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | Concept |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | RAL 7035 |
| Body Thickness | :Â Â | 1.52 |
| Door Thickness | :Â Â | 1.9 |
| Panel Size (D) | :Â Â | 716 |
| Panel Size (E) | :Â Â | 564 |
| Mounting (G x H) | :Â Â | 814 x 572 |
| Latch Quantity | :Â Â | 2 |
| Latch Type | :Â Â | Quarter-Turn |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 4 |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 54 |
| Sub Brand | :Â Â | Concept |
| Material | :Â Â | Steel |
| Size | :Â Â | 30.00x24.00x10.00 in |
| Color | :Â Â | LtGray |
| NEMA Rating | :Â Â | 4 Watertight |
