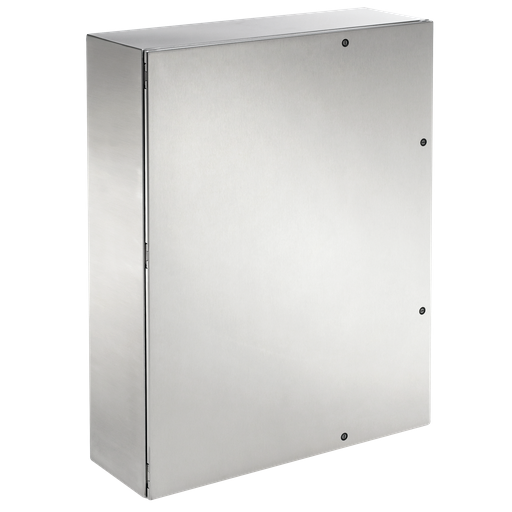

Concept Wallmount Multi 1/4-Turn Latch 4X, 72x36x16, Brushed, SS304
MFG #CSD723616SSR
$8,026.00Â /Â E
EACH
EACH
Product Description:
For indoor or outdoor applications that require corrosion protection from chemicals and water. This Concept Wallmount Multi 1/4-Turn Latch 4X, CSD723616SSR item measures 72x36x16 in. with a material of SS 316, Brushed.
HESCO Part Number
HFCSD723616SSR
UPC
783510152956
Manufacturer Part Number
CSD723616SSR
Manufacturer
Hoffman
Concept Wallmount Multi 1/4-Turn Latch 4X, 72x36x16, Brushed, SS304
MFG #CSD723616SSR
Product Description:
For indoor or outdoor applications that require corrosion protection from chemicals and water. This Concept Wallmount Multi 1/4-Turn Latch 4X, CSD723616SSR item measures 72x36x16 in. with a material of SS 316, Brushed.
HESCO Part Number
HFCSD723616SSR
UPC
783510152956
Manufacturer Part Number
CSD723616SSR
Manufacturer
Hoffman
$8,026.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Minimum-width body flange provides maximum body opening
- Corner formed doors
- External formed 90-degree body flange
- Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door
- Integral door alignment device to properly align door and gasket to body offset
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door for thermoplastic data pocket
- Provision on door for optional doorstop kit
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel mounting nuts, panel grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Specifications
| Height (H) | :Â Â | 1,829 |
| Width (W) | :Â Â | 914 |
| Depth (D) | :Â Â | 406 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | Concept |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 2 |
| Mounting (G x H) | :Â Â | 1791 x 876 |
| Latch Quantity | :Â Â | 4 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 228 |
| Latch Type | :Â Â | Quarter-Turn |
| Sub Brand | :Â Â | Concept |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 72.00x36.00x16.00 in |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
- Seams continuously welded and ground smooth
- Minimum-width body flange provides maximum body opening
- Corner formed doors
- External formed 90-degree body flange
- Stainless steel quarter-turn latches with flush slotted insert provided on three sides of enclosure door
- Integral door alignment device to properly align door and gasket to body offset
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for direct mounting or for optional external mounting brackets
- Stainless steel hidden hinges
- Doors are interchangeable and easily removed by pulling clip-style hinge pins
- Provision on door for thermoplastic data pocket
- Provision on door for optional doorstop kit
- Seamless foam-in-place gasket
- Self-grounding latch system with double seal
- Bonding provision on door; grounding stud on body
- Furnished hardware kit consists of panel mounting nuts, panel grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
Specifications
Height (H) :Â Â 1,829 Width (W) :Â Â 914 Depth (D) :Â Â 406 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â Concept Finish :Â Â Brushed #4 Thickness (T) :Â Â 2 Mounting (G x H) :Â Â 1791 x 876 Latch Quantity :Â Â 4 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 228 Latch Type :Â Â Quarter-Turn Sub Brand :Â Â Concept Material :Â Â Stainless Steel Size :Â Â 72.00x36.00x16.00 in NEMA Rating :Â Â 12 Indoor, dust-resistant - Downloads
Spec Sheet
Data SheetData Sheet - Spec-00140 - NAM-CAData Sheet - Spec-00829 - NAM-USData Sheet - Spec-01360 - NAM-CA
CertificateCertificate - CERT-00031 - NAM-USCertificate - CE-UKCA-00036_Concept - NAM-US
Instruction ManualInstruction Manual - 64303001 - NAM-US
