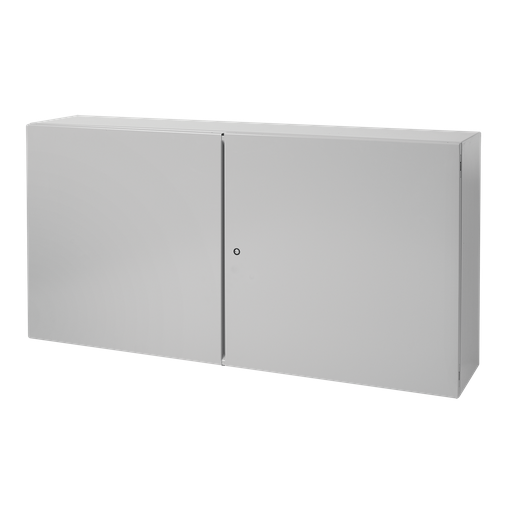

Concept Two-Door Enclosure, 36.00x48.00x12.00, Gray, Steel
MFG #CTD364812
$1,778.00 / E
EACH
EACH
Product Description:
Concept two door enclosures offer full-width access for machine control applications. This Concept Two-Door Enclosure, CTD364812 item measures 36.00x48.00x12.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFCTD364812
UPC
783510777500
Manufacturer Part Number
CTD364812
Manufacturer
Hoffman
Concept Two-Door Enclosure, 36.00x48.00x12.00, Gray, Steel
MFG #CTD364812
Product Description:
Concept two door enclosures offer full-width access for machine control applications. This Concept Two-Door Enclosure, CTD364812 item measures 36.00x48.00x12.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFCTD364812
UPC
783510777500
Manufacturer Part Number
CTD364812
Manufacturer
Hoffman
$1,778.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 in.
- Four hinges on 60in.-high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Overlapping door design that provides full-width access
- Three-point latch system on right-hand hinged door furnished with flush slotted insert
Specifications
| Height (H) | : | 914 |
| Width (W) | : | 1,219 |
| Depth (D) | : | 305 |
| Protection Rating | : | NEMA Type 12 |
| Product Family | : | Concept |
| Finish | : | Powder Coated |
| Color Code | : | ANSI 61 |
| Body Thickness | : | 1.9 |
| Door Thickness | : | 1.9 |
| Mounting (G x H) | : | 876 x 1181 |
| Modification Services | : | Yes |
| Type Number | : | Type 12 |
| IP Rating | : | IP55 |
| Weight | : | 131 |
| Sub Brand | : | Concept |
| Material | : | Steel |
| Size | : | 36.00x48.00x12.00 in |
| Color | : | Gray |
| NEMA Rating | : | 12 Indoor, dust-resistant |
- Seams continuously welded and ground smooth
- Corner-formed doors
- Simple easy-to-remove and install hinge pins with built-in captivation clip
- High-torque threadless studs and fasteners on door
- Minimum-width body flange provides maximum door opening (210 degrees)
- Door opens 210 degrees
- External formed body flange
- Panel mounting studs fit optional Concept panels and other accessories
- Mounting holes in back of body for optional external wall-mount brackets
- Removable door with hidden hinges for clean, aesthetic appearance
- Seamless foam-in-place gasket
- Quarter-turn slotted latch(es)
- Door alignment device on doors wider than 30 in.
- Four hinges on 60in.-high enclosures
- Grounding stud on body; bonding provision on door
- Provisions on door for optional high-impact thermoplastic data pocket
- Hardware kit with panel mounting nuts, panel grounding hardware and sealing washers
- Installation instructions provided
- Overlapping door design that provides full-width access
- Three-point latch system on right-hand hinged door furnished with flush slotted insert
Specifications
Height (H) : 914 Width (W) : 1,219 Depth (D) : 305 Protection Rating : NEMA Type 12 Product Family : Concept Finish : Powder Coated Color Code : ANSI 61 Body Thickness : 1.9 Door Thickness : 1.9 Mounting (G x H) : 876 x 1181 Modification Services : Yes Type Number : Type 12 IP Rating : IP55 Weight : 131 Sub Brand : Concept Material : Steel Size : 36.00x48.00x12.00 in Color : Gray NEMA Rating : 12 Indoor, dust-resistant - Data Sheet
Data Sheet - Spec-00286 - NAM-CAData Sheet - Spec-00775 - NAM-USData Sheet - Spec-01346 - NAM-CA
CertificateCertificate - CERT-00284 - NAM-USCertificate - CE-UKCA-00025_Enclosure-Wallmount-12 - NAM-US
DownloadsSpec Sheet
Instruction ManualInstruction Manual - 64303001 - NAM-US
