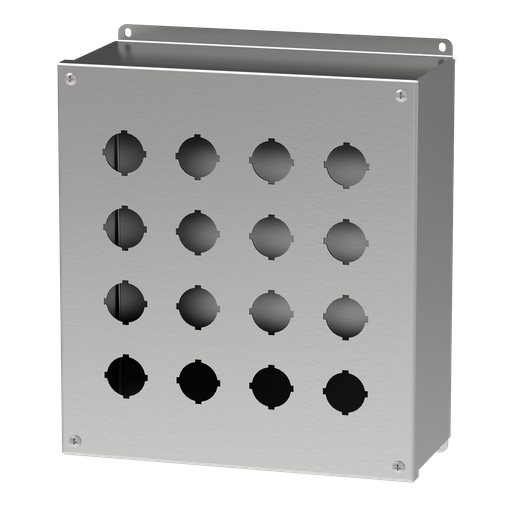

Extra-Deep Pushbutton Screw Cover Type 4X, 16PBx30.5mm, SS316
MFG #E16PBXSS6
$1,630.00Â /Â E
EACH
EACH
Product Description:
Extra deep, Type 4X, Pushbutton Enclosures provide space for deep, contact terminal blocks. This Extra-Deep Pushbutton Screw Cover Type 4X, E16PBXSS6 item measures 16PBx30.5mm with a material of SS316.
HESCO Part Number
HFE16PBXSS6
UPC
783510849603
Manufacturer Part Number
E16PBXSS6
Manufacturer
Hoffman
Extra-Deep Pushbutton Screw Cover Type 4X, 16PBx30.5mm, SS316
MFG #E16PBXSS6
Product Description:
Extra deep, Type 4X, Pushbutton Enclosures provide space for deep, contact terminal blocks. This Extra-Deep Pushbutton Screw Cover Type 4X, E16PBXSS6 item measures 16PBx30.5mm with a material of SS316.
HESCO Part Number
HFE16PBXSS6
UPC
783510849603
Manufacturer Part Number
E16PBXSS6
Manufacturer
Hoffman
$1,630.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Extra-deep design accommodates additional contact blocks for pushbuttons.
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Specifications
| Height (H) | :Â Â | 298 |
| Width (W) | :Â Â | 273 |
| Depth (D) | :Â Â | 121 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PushButton |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 1.9 |
| Hole Quantity | :Â Â | 16 |
| Overall Dimensions (L x W) | :Â Â | 324 x 279 |
| Mounting (G x H) | :Â Â | 311 x 251 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
| Weight | :Â Â | 10.06 |
| Number of Holes | :Â Â | 16 |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 16PB x 30.5mm |
- Extra-deep design accommodates additional contact blocks for pushbuttons.
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Specifications
Height (H) :Â Â 298 Width (W) :Â Â 273 Depth (D) :Â Â 121 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â PushButton Finish :Â Â Brushed #4 Thickness (T) :Â Â 1.9 Hole Quantity :Â Â 16 Overall Dimensions (L x W) :Â Â 324 x 279 Mounting (G x H) :Â Â 311 x 251 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 NEMA Rating :Â Â 4X Watertight, corrosion-resistant Weight :Â Â 10.06 Number of Holes :Â Â 16 Material :Â Â Stainless Steel Size :Â Â 16PB x 30.5mm - Downloads
Spec Sheet
CertificateCertificate - CERT-00183 - NAM-USCertificate - CE-UKCA-00046_Pushbutton - NAM-US
Data SheetData Sheet - Spec-00367 - NAM-CAData Sheet - Spec-00825 - NAM-US
