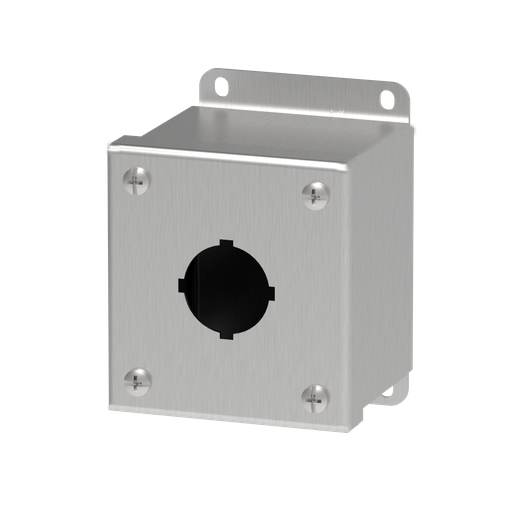

Pushbutton Screw Cover Type 4X, 1PBx30.5mm, SS304
MFG #E1PBSS
$331.00Â /Â E
EACH
EACH
Product Description:
This stainless steel enclosure is pre-punched for easy installation of 30.5mm or 22.5mm components. This Pushbutton Screw Cover Type 4X, E1PBSS item measures 1PBx30.5mm with a material of SS304.
HESCO Part Number
HFE1PBSS
UPC
783510596101
Manufacturer Part Number
E1PBSS
Manufacturer
Hoffman
Pushbutton Screw Cover Type 4X, 1PBx30.5mm, SS304
MFG #E1PBSS
Product Description:
This stainless steel enclosure is pre-punched for easy installation of 30.5mm or 22.5mm components. This Pushbutton Screw Cover Type 4X, E1PBSS item measures 1PBx30.5mm with a material of SS304.
HESCO Part Number
HFE1PBSS
UPC
783510596101
Manufacturer Part Number
E1PBSS
Manufacturer
Hoffman
$331.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Prepunched 30.5mm or 22.5mm holes
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Specifications
| Height (H) | :Â Â | 89 |
| Width (W) | :Â Â | 108 |
| Depth (D) | :Â Â | 70 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PushButton |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 1.98 |
| Hole Size (HS) | :Â Â | 30.5 |
| Hole Quantity | :Â Â | 1 |
| Overall Dimensions (L x W) | :Â Â | 114 x 88 |
| Mounting (G x H) | :Â Â | 102 x 60 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 1.5 |
| Number of Holes | :Â Â | 1 |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 1PB x 30.5mm |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
- Prepunched 30.5mm or 22.5mm holes
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Specifications
Height (H) :Â Â 89 Width (W) :Â Â 108 Depth (D) :Â Â 70 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â PushButton Finish :Â Â Brushed #4 Thickness (T) :Â Â 1.98 Hole Size (HS) :Â Â 30.5 Hole Quantity :Â Â 1 Overall Dimensions (L x W) :Â Â 114 x 88 Mounting (G x H) :Â Â 102 x 60 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 1.5 Number of Holes :Â Â 1 Material :Â Â Stainless Steel Size :Â Â 1PB x 30.5mm NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Data Sheet
