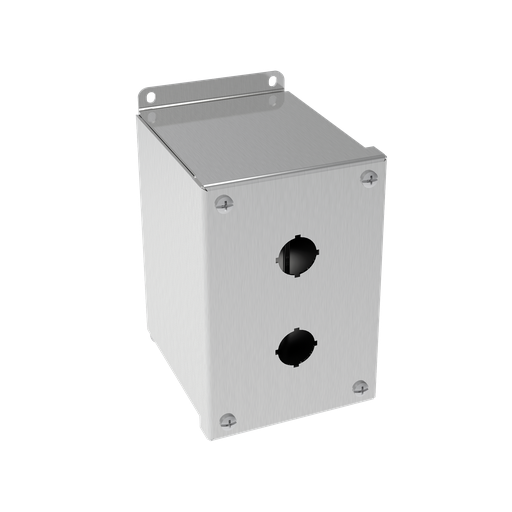

Extra-Deep Pushbutton Screw Cover Type 4X, 2PBx22.5mm, SS304
MFG #E2PBGXSS
$515.00Â /Â E
EACH
EACH
Product Description:
Extra-Deep, Pushbutton Enclosures are pre-punched for easy installation of 22.5mm components. This Extra-Deep Pushbutton Screw Cover Type 4X, E2PBGXSS item measures 2PBx22.5mm with a material of SS304.
HESCO Part Number
HFE2PBGXSS
UPC
783510602802
Manufacturer Part Number
E2PBGXSS
Manufacturer
Hoffman
Extra-Deep Pushbutton Screw Cover Type 4X, 2PBx22.5mm, SS304
MFG #E2PBGXSS
Product Description:
Extra-Deep, Pushbutton Enclosures are pre-punched for easy installation of 22.5mm components. This Extra-Deep Pushbutton Screw Cover Type 4X, E2PBGXSS item measures 2PBx22.5mm with a material of SS304.
HESCO Part Number
HFE2PBGXSS
UPC
783510602802
Manufacturer Part Number
E2PBGXSS
Manufacturer
Hoffman
$515.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Extra-deep design accommodates additional contact blocks for pushbuttons.
- Seams continuously welded and ground smooth
- Captivated stainless steel cover screws thread into sealed wells
- Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Bonding provision on door; grounding nut on body
- Oil-resistant gasket
Specifications
| Height (H) | :Â Â | 152 |
| Width (W) | :Â Â | 102 |
| Depth (D) | :Â Â | 121 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PushButton |
| Finish | :Â Â | Brushed #4 |
| Body Thickness | :Â Â | 1.98 |
| Door Thickness | :Â Â | 1.59 |
| Overall Dimensions (L x W) | :Â Â | 178 x 107 |
| Mounting (G x H) | :Â Â | 165 x 80 |
| Hole Quantity | :Â Â | 2 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 3.3 |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 2PB x 22.5mm |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
- Extra-deep design accommodates additional contact blocks for pushbuttons.
- Seams continuously welded and ground smooth
- Captivated stainless steel cover screws thread into sealed wells
- Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Bonding provision on door; grounding nut on body
- Oil-resistant gasket
Specifications
Height (H) :Â Â 152 Width (W) :Â Â 102 Depth (D) :Â Â 121 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â PushButton Finish :Â Â Brushed #4 Body Thickness :Â Â 1.98 Door Thickness :Â Â 1.59 Overall Dimensions (L x W) :Â Â 178 x 107 Mounting (G x H) :Â Â 165 x 80 Hole Quantity :Â Â 2 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 3.3 Material :Â Â Stainless Steel Size :Â Â 2PB x 22.5mm NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Data Sheet
Data Sheet - Spec-00369 - NAM-CAData Sheet - Spec-00826 - NAM-USData Sheet - Spec-01369 - NAM-CA
DownloadsSpec Sheet
CertificateCertificate - CERT-00183 - NAM-USCertificate - CE-UKCA-00046_Pushbutton - NAM-US
