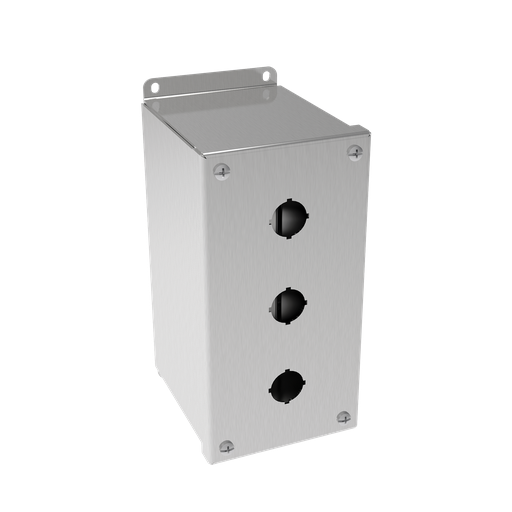

Extra-Deep Pushbutton Screw Cover Type 4X, 3PBx22.5mm, SS304
MFG #E3PBGXSS
$595.00Â /Â E
EACH
EACH
Product Description:
Extra-Deep, Pushbutton Enclosures are pre-punched for easy installation of 22.5mm components. This Extra-Deep Pushbutton Screw Cover Type 4X, E3PBGXSS item measures 3PBx22.5mm with a material of SS304.
HESCO Part Number
HFE3PBGXSS
UPC
783510602901
Manufacturer Part Number
E3PBGXSS
Manufacturer
Hoffman
Extra-Deep Pushbutton Screw Cover Type 4X, 3PBx22.5mm, SS304
MFG #E3PBGXSS
Product Description:
Extra-Deep, Pushbutton Enclosures are pre-punched for easy installation of 22.5mm components. This Extra-Deep Pushbutton Screw Cover Type 4X, E3PBGXSS item measures 3PBx22.5mm with a material of SS304.
HESCO Part Number
HFE3PBGXSS
UPC
783510602901
Manufacturer Part Number
E3PBGXSS
Manufacturer
Hoffman
$595.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Extra-deep design accommodates additional contact blocks for pushbuttons.
- Seams continuously welded and ground smooth
- Captivated stainless steel cover screws thread into sealed wells
- Enclosures 8.50 x 4.00 x 4.75 in. (216 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Bonding provision on door; grounding nut on body
- Oil-resistant gasket
Specifications
| Height (H) | :Â Â | 203 |
| Width (W) | :Â Â | 102 |
| Depth (D) | :Â Â | 121 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PushButton |
| Finish | :Â Â | Brushed #4 |
| Body Thickness | :Â Â | 1.98 |
| Door Thickness | :Â Â | 1.59 |
| Overall Dimensions (L x W) | :Â Â | 229 x 107 |
| Mounting (G x H) | :Â Â | 216 x 80 |
| Hole Quantity | :Â Â | 3 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 4.1 |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 3PB x 22.5mm |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
