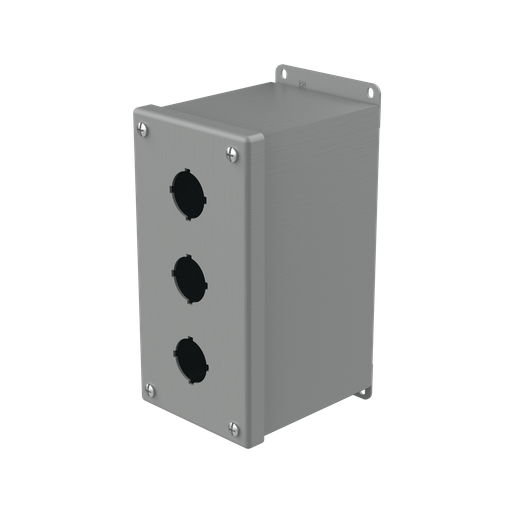

Extra-Deep Pushbutton Enclosure Type 12, 3PBx30.5mm, Gray, Steel
MFG #E3PBX
$178.00Â /Â E
EACH
EACH
Product Description:
Extra deep pre-cut pushbutton enclosures give the most room for deep contact blocks and wiring. This Extra-Deep Pushbutton Enclosure Type 12, E3PBX item measures 3PBx30.5mm with a material of Steel colored Gray.
HESCO Part Number
HFE3PBX
UPC
783510581404
Manufacturer Part Number
E3PBX
Manufacturer
Hoffman
Extra-Deep Pushbutton Enclosure Type 12, 3PBx30.5mm, Gray, Steel
MFG #E3PBX
Product Description:
Extra deep pre-cut pushbutton enclosures give the most room for deep contact blocks and wiring. This Extra-Deep Pushbutton Enclosure Type 12, E3PBX item measures 3PBx30.5mm with a material of Steel colored Gray.
HESCO Part Number
HFE3PBX
UPC
783510581404
Manufacturer Part Number
E3PBX
Manufacturer
Hoffman
$178.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Specifications
| Height (H) | :Â Â | 203 |
| Width (W) | :Â Â | 102 |
| Depth (D) | :Â Â | 121 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PushButton |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.9 |
| Hole Size (HS) | :Â Â | 30.5 |
| Hole Quantity | :Â Â | 3 |
| Mounting (G x H) | :Â Â | 216 x 79 |
| Overall Dimensions (L x W) | :Â Â | 229 x 107 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 13 |
| IP Rating | :Â Â | IP65 |
| Weight | :Â Â | 4.1 |
| Number of Holes | :Â Â | 3 |
| Material | :Â Â | Steel |
| Size | :Â Â | 3PB x 30.5mm |
| Color | :Â Â | Gray |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
Instruction Manual
Instruction Manual - 23155002 - NAM-US
Certificate
Certificate - CERT-00182 - NAM-US
Downloads
Spec Sheet
Data Sheet
Data Sheet - Spec-00008 - NAM-CA
Data Sheet - Spec-00769 - NAM-US
Data Sheet - Spec-01355 - NAM-CA
