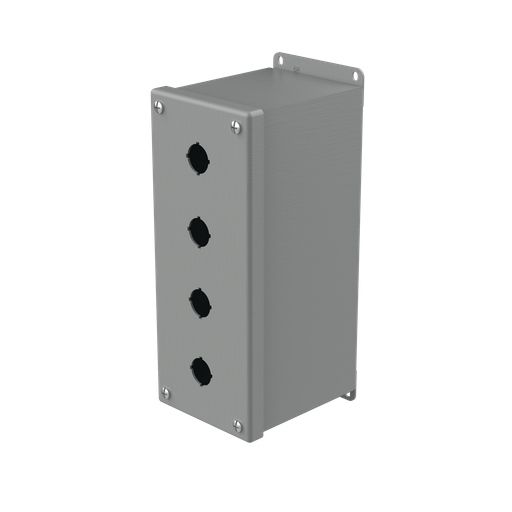

Extra-Deep Pushbutton Portrait Enclosure Type 12, 4PBx22.5mm, Gray, Steel
MFG #E4PBXM
$202.00Â /Â E
EACH
EACH
Product Description:
Extra deep pre-cut pushbutton enclosures give the most room for deep contact blocks and wiring. This Extra-Deep Pushbutton Portrait Enclosure Type 12, E4PBXM item measures 4PBx22.5mm with a material of Steel colored Gray.
HESCO Part Number
HFE4PBXM
UPC
783510130381
Manufacturer Part Number
E4PBXM
Manufacturer
Hoffman
Extra-Deep Pushbutton Portrait Enclosure Type 12, 4PBx22.5mm, Gray, Steel
MFG #E4PBXM
Product Description:
Extra deep pre-cut pushbutton enclosures give the most room for deep contact blocks and wiring. This Extra-Deep Pushbutton Portrait Enclosure Type 12, E4PBXM item measures 4PBx22.5mm with a material of Steel colored Gray.
HESCO Part Number
HFE4PBXM
UPC
783510130381
Manufacturer Part Number
E4PBXM
Manufacturer
Hoffman
$202.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Specifications
| Height (H) | :Â Â | 254 |
| Width (W) | :Â Â | 102 |
| Depth (D) | :Â Â | 121 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PushButton |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.9 |
| Hole Size (HS) | :Â Â | 22.5 |
| Hole Quantity | :Â Â | 4 |
| Mounting (G x H) | :Â Â | 267 x 79 |
| Overall Dimensions (L x W) | :Â Â | 279 x 107 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 13 |
| IP Rating | :Â Â | IP65 |
| Weight | :Â Â | 4.8 |
| Number of Holes | :Â Â | 4 |
| Material | :Â Â | Steel |
| Size | :Â Â | 4PB x 22.5mm |
| Color | :Â Â | Gray |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
