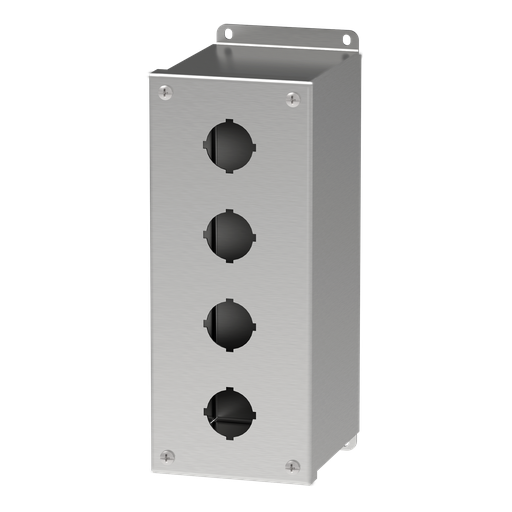

Extra-Deep Pushbutton Screw Cover Type 4X, 4PBx30.5mm, SS304
MFG #E4PBXSS
$643.00Â /Â E
EACH
EACH
Product Description:
Extra deep, Type 4X, Pushbutton Enclosures provide space for deep, contact terminal blocks. This Extra-Deep Pushbutton Screw Cover Type 4X, E4PBXSS item measures 4PBx30.5mm with a material of SS304.
HESCO Part Number
HFE4PBXSS
UPC
783510593803
Manufacturer Part Number
E4PBXSS
Manufacturer
Hoffman
Extra-Deep Pushbutton Screw Cover Type 4X, 4PBx30.5mm, SS304
MFG #E4PBXSS
Product Description:
Extra deep, Type 4X, Pushbutton Enclosures provide space for deep, contact terminal blocks. This Extra-Deep Pushbutton Screw Cover Type 4X, E4PBXSS item measures 4PBx30.5mm with a material of SS304.
HESCO Part Number
HFE4PBXSS
UPC
783510593803
Manufacturer Part Number
E4PBXSS
Manufacturer
Hoffman
$643.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Extra-deep design accommodates additional contact blocks for pushbuttons.
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Specifications
| Height (H) | :Â Â | 254 |
| Width (W) | :Â Â | 102 |
| Depth (D) | :Â Â | 121 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PushButton |
| Finish | :Â Â | Brushed #4 |
| Thickness (T) | :Â Â | 1.9 |
| Hole Quantity | :Â Â | 4 |
| Overall Dimensions (L x W) | :Â Â | 279 x 107 |
| Mounting (G x H) | :Â Â | 267 x 79 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 3R |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 4.7 |
| Number of Holes | :Â Â | 4 |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 4PB x 30.5mm |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
- Extra-deep design accommodates additional contact blocks for pushbuttons.
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on door; grounding nut on body
- 4-way pushbutton holes accept all brands of oil-tight pushbuttons, switches and pilot lights
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- Oil-resistant gasket
Specifications
Height (H) :Â Â 254 Width (W) :Â Â 102 Depth (D) :Â Â 121 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â PushButton Finish :Â Â Brushed #4 Thickness (T) :Â Â 1.9 Hole Quantity :Â Â 4 Overall Dimensions (L x W) :Â Â 279 x 107 Mounting (G x H) :Â Â 267 x 79 Modification Services :Â Â Yes Type Number :Â Â Type 3R IP Rating :Â Â IP66 Weight :Â Â 4.7 Number of Holes :Â Â 4 Material :Â Â Stainless Steel Size :Â Â 4PB x 30.5mm NEMA Rating :Â Â 4X Watertight, corrosion-resistant - Downloads
Spec Sheet
CertificateCertificate - CERT-00183 - NAM-USCertificate - CE-UKCA-00046_Pushbutton - NAM-US
Data SheetData Sheet - Spec-00367 - NAM-CAData Sheet - Spec-00825 - NAM-US
