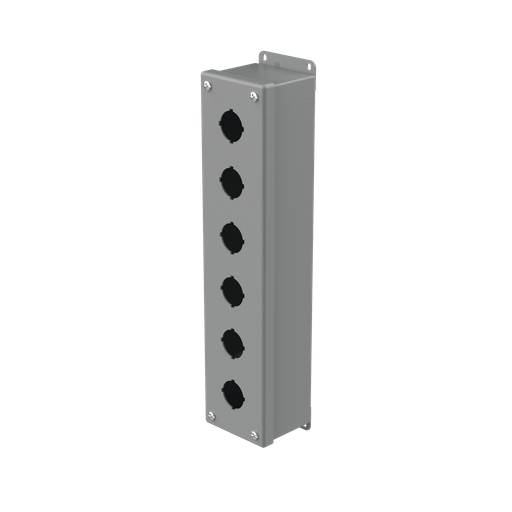

Pushbutton Enclosures Type 12, 6PBx30.5mm, Gray, Steel
MFG #E6PBVL
$198.00Â /Â E
EACH
EACH
Product Description:
Pre-cut pushbutton enclosures house and protect push buttons, lights and switches. This Pushbutton Enclosures Type 12, E6PBVL item measures 6PBx30.5mm with a material of Steel colored Gray.
HESCO Part Number
HFE6PBVL
UPC
783510578206
Manufacturer Part Number
E6PBVL
Manufacturer
Hoffman
Pushbutton Enclosures Type 12, 6PBx30.5mm, Gray, Steel
MFG #E6PBVL
Product Description:
Pre-cut pushbutton enclosures house and protect push buttons, lights and switches. This Pushbutton Enclosures Type 12, E6PBVL item measures 6PBx30.5mm with a material of Steel colored Gray.
HESCO Part Number
HFE6PBVL
UPC
783510578206
Manufacturer Part Number
E6PBVL
Manufacturer
Hoffman
$198.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Specifications
| Height (H) | :Â Â | 375 |
| Width (W) | :Â Â | 83 |
| Depth (D) | :Â Â | 70 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | PushButton |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.9 |
| Hole Size (HS) | :Â Â | 30.5 |
| Hole Quantity | :Â Â | 6 |
| Overall Dimensions (L x W) | :Â Â | 400 x 88 |
| Mounting (G x H) | :Â Â | 387 x 60 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 13 |
| IP Rating | :Â Â | IP65 |
| Weight | :Â Â | 4.4 |
| Number of Holes | :Â Â | 6 |
| Material | :Â Â | Steel |
| Size | :Â Â | 6PB x 30.5mm |
| Color | :Â Â | Gray |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Specifications
Height (H) :Â Â 375 Width (W) :Â Â 83 Depth (D) :Â Â 70 Protection Rating :Â Â NEMA Type 12 Product Family :Â Â PushButton Finish :Â Â Powder Coated Color Code :Â Â ANSI 61 Thickness (T) :Â Â 1.9 Hole Size (HS) :Â Â 30.5 Hole Quantity :Â Â 6 Overall Dimensions (L x W) :Â Â 400 x 88 Mounting (G x H) :Â Â 387 x 60 Modification Services :Â Â Yes Type Number :Â Â Type 13 IP Rating :Â Â IP65 Weight :Â Â 4.4 Number of Holes :Â Â 6 Material :Â Â Steel Size :Â Â 6PB x 30.5mm Color :Â Â Gray NEMA Rating :Â Â 12 Indoor, dust-resistant - Instruction Manual
Instruction Manual - 23155002 - NAM-US
CertificateCertificate - CE-00028 - NAM-USCertificate - CERT-00182 - NAM-US
Data SheetData Sheet - Spec-00357 - NAM-CAData Sheet - Spec-00771 - NAM-USData Sheet - Spec-01362 - NAM-CA
DownloadsSpec Sheet
