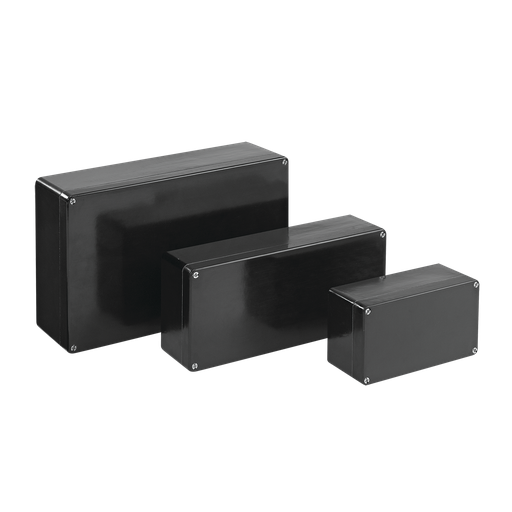

ZonEx Non-Metallic Terminal Enclosure, 160x160x90mm, Black, Fiberglass
MFG #EXE16016090
$197.00 / E
EACH
EACH
Product Description:
Kopplingslåda i polyester för Ex e-tillämpningar med ökad säkerhet. Kompressionsgjuten glasfiberförstärkt polyester med extra medel för att hantera uppbyggnad av statisk laddning. Invändiga M4- eller M6-insatser i rostfritt stål för DIN- och panelmontering. Måtten för monteringsläget är ingjutna på skåpets baksida. Försedd med täckta fästskruvar utanför det tätade området.
HESCO Part Number
HFEXE16016090
UPC
783510262457
Manufacturer Part Number
EXE16016090
Manufacturer
Hoffman
ZonEx Non-Metallic Terminal Enclosure, 160x160x90mm, Black, Fiberglass
MFG #EXE16016090
Product Description:
Kopplingslåda i polyester för Ex e-tillämpningar med ökad säkerhet. Kompressionsgjuten glasfiberförstärkt polyester med extra medel för att hantera uppbyggnad av statisk laddning. Invändiga M4- eller M6-insatser i rostfritt stål för DIN- och panelmontering. Måtten för monteringsläget är ingjutna på skåpets baksida. Försedd med täckta fästskruvar utanför det tätade området.
HESCO Part Number
HFEXE16016090
UPC
783510262457
Manufacturer Part Number
EXE16016090
Manufacturer
Hoffman
$197.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- Compression-molded, high-impact strength, polyester body and cover
- Cover includes recessed, retained, combination head (Straight blade, Phillips and Torx drive) M4 or M6 stainless steel Type 316 screws
- Retained, continuous, high-temperature silicon gasket within a labyrinth seal between cover and body
- Durable and reusable, internal M4 or M6 stainless steel inserts for DIN- and Panel-mounting
- Covered mounting screw provisions outside of gasketed area, sized M4 (#8) or M6 (¼-in.)
- Mounting location dimensions are molded into the back side of the enclosure
- Panel mounting screws included, M4 or M6
- Compression-molded fiberglass with added agents to address static charge build-up
- High-impact strength as well as high temperature-rated
- Increased Safety: Ex e applications
- Optional panels are pre-plated steel, 1.5mm (16 ga.) thick; or 2mm composite
Specifications
| Height (H) | : | 160 |
| Width (W) | : | 160 |
| Depth (D) | : | 90 |
| Protection Rating | : | NEMA Type 12 |
| Product Family | : | Zonex |
| Finish | : | Smooth Gloss |
| Thickness (T) | : | 4.1 |
| Mounting Screw Size | : | 1/4 |
| Modification Services | : | No |
| NEMA Rating | : | 12 Indoor, dust-resistant |
| Weight | : | 2.9 |
| Material | : | Polyester |
| Size | : | 160x160x90mm |
| Color | : | Black |
Data Sheet
Data Sheet - Spec-01028 - NAM-CA
Data Sheet - EXE-NB(FRENCH) Product sheet - NAM-CA
Data Sheet - Spec-01088 - NAM-US
Instruction Manual
Instruction Manual - eng - 67a091880000e0d61e7792865d4ae9ab_67a091880000e0d71b8659316a83eba0
Certificate
Certificate - ATEX_IBE_16ATEX1234U.PDF - NAM-US
Certificate - IECEx_IBE_16.0049U - NAM-US
Certificate - DoC_Zonex_Non_Metallic - NAM-US
Certificate - EU-DoC-EN_ZonEx-Non-Metallic - NAM-US
