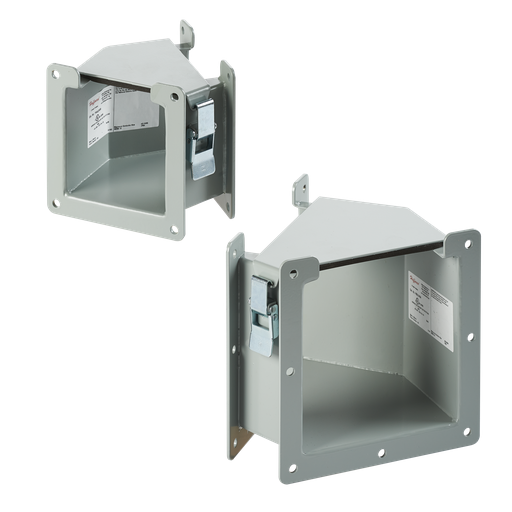

Elbow 45-Degree Outside Opening, 2.50x2.50, Gray, Steel
MFG #F22LE45C
$246.00Â /Â E
EACH
EACH
Product Description:
Layin 45-Degree Elbows provide wireway runs with 45-degree turns. Three different elbows available. This 45-Degree Elbow Outside Opening, F22LE45C item measures 2.50x2.50 inches with a material of Steel colored Gray.
HESCO Part Number
HFF22LE45C
UPC
783510181604
Manufacturer Part Number
F22LE45C
Manufacturer
Hoffman
Elbow 45-Degree Outside Opening, 2.50x2.50, Gray, Steel
MFG #F22LE45C
Product Description:
Layin 45-Degree Elbows provide wireway runs with 45-degree turns. Three different elbows available. This 45-Degree Elbow Outside Opening, F22LE45C item measures 2.50x2.50 inches with a material of Steel colored Gray.
HESCO Part Number
HFF22LE45C
UPC
783510181604
Manufacturer Part Number
F22LE45C
Manufacturer
Hoffman
$246.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Lay-in Hinged-Cover 45-Degree Elbows are used for continuous wireway runs with 45-degree turns
- Because sections of lay-in wireway can be mounted with covers oriented in any direction, three different 45-degree elbows are available
- Proper selection allows the user to maintain the same access and thereby preserve the lay-in feature for right-angle installations
Specifications
| Type | :Â Â | Elbow |
| Height (H) | :Â Â | 64 |
| Width (W) | :Â Â | 64 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Color | :Â Â | Gray |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.9 |
| Sealing Plate Type | :Â Â | Flat |
| Sealing Plate Quantity | :Â Â | 1 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP54 |
| Wireway | :Â Â | Lay-In NEMA Type 12 Wireway |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 2.1 |
| Height | :Â Â | 2.5 in |
| Material | :Â Â | Steel |
| Finish | :Â Â | Painted Steel |
Instruction Manual
Instruction Manual - 99401617 - NAM-US
Downloads
Spec Sheet
Certificate
Certificate - CERT-00148 - NAM-US
Data Sheet
Data Sheet - Spec-00321 - NAM-CA
Data Sheet - Spec-01366 - NAM-CA
