Sealing Plate 90-Degree Angle Lay-in HC Type 12 and 3R, 6.00x6.00, Gray, Steel
MFG #F66LSAG
$37.60Â /Â E
EACH
EACH
Product Description:
Sealing Plate junctions to sections or fittings to a closure plate, box connector, or cutoff fitting. This Sealing Plate 90-Degree Angle Lay-in HC Type 12 and 3R, F66LSAG item measures 6.00x6.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFF66LSAG
UPC
783510187101
Manufacturer Part Number
F66LSAG
Manufacturer
Hoffman
Sealing Plate 90-Degree Angle Lay-in HC Type 12 and 3R, 6.00x6.00, Gray, Steel
MFG #F66LSAG
Product Description:
Sealing Plate junctions to sections or fittings to a closure plate, box connector, or cutoff fitting. This Sealing Plate 90-Degree Angle Lay-in HC Type 12 and 3R, F66LSAG item measures 6.00x6.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFF66LSAG
UPC
783510187101
Manufacturer Part Number
F66LSAG
Manufacturer
Hoffman
$37.60Â /Â E
EACH
EACH
- Features
- Specifications
- Resources

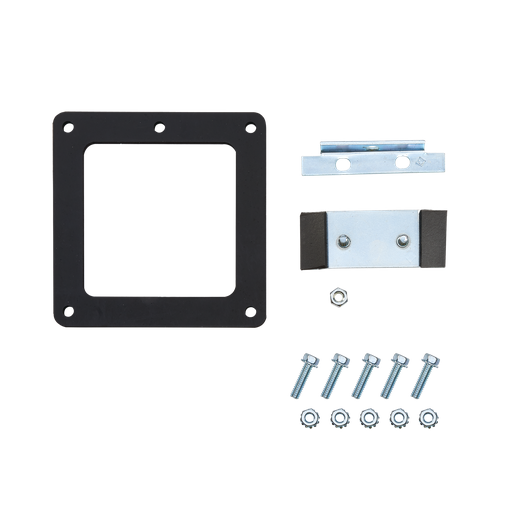

- Lay-in Hinged-Cover 90-Degree Angle Sealing Plates are used for junction to a lay-in wireway section or fitting to a closure plate, a box connector, a non-lay-in cut-off fitting or any similar non-lay-in section or fitting
- Each sealing plate also includes one gasket and one set of screws to join sections
Specifications
| Type | :Â Â | Sealing Plate |
| Height (H) | :Â Â | 152 |
| Width (W) | :Â Â | 152 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Material | :Â Â | Mild Steel |
| Finish | :Â Â | Galvanized |
| Color | :Â Â | Gray |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.9 |
| Modification Services | :Â Â | Yes |
| IP Rating | :Â Â | IP54 |
| Wireway | :Â Â | Lay-In NEMA Type 12 Wireway |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 0.81 |
