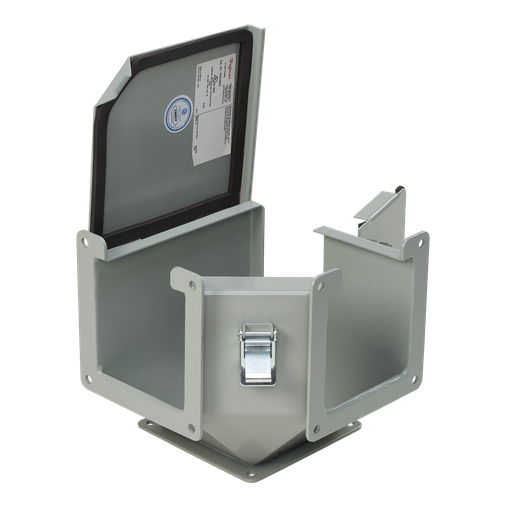

Elbow 90-Degree Outside Top Opening, 8.00x8.00, Gray, Steel
MFG #F88LE9AC
$504.00Â /Â E
EACH
EACH
Product Description:
Lay-in 90-Degree Elbow Outside Top Opening used for 90-deg turns in vertical drops. This 90-Degree Elbow Outside Top Opening, F88LE9AC item measures 8.00x8.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFF88LE9AC
UPC
783510195106
Manufacturer Part Number
F88LE9AC
Manufacturer
Hoffman
Elbow 90-Degree Outside Top Opening, 8.00x8.00, Gray, Steel
MFG #F88LE9AC
Product Description:
Lay-in 90-Degree Elbow Outside Top Opening used for 90-deg turns in vertical drops. This 90-Degree Elbow Outside Top Opening, F88LE9AC item measures 8.00x8.00 inches with a material of Steel colored Gray.
HESCO Part Number
HFF88LE9AC
UPC
783510195106
Manufacturer Part Number
F88LE9AC
Manufacturer
Hoffman
$504.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Lay-in Hinged-Cover 90-Degree Elbow with Outside Top Opening are used for right-angle wireway installations
- This elbow fitting allows a vertical drop to equipment below at a 90-degree corner while maintaining the top opening lay-in feature
Specifications
| Type | :Â Â | Elbow |
| Height (H) | :Â Â | 203 |
| Width (W) | :Â Â | 203 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Material | :Â Â | Mild Steel |
| Finish | :Â Â | Galvanized |
| Color | :Â Â | Gray |
| Color Code | :Â Â | ANSI 61 |
| Thickness (T) | :Â Â | 1.9 |
| Sealing Plate Type | :Â Â | Flat |
| Sealing Plate Quantity | :Â Â | 2 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP54 |
| Wireway | :Â Â | Lay-In NEMA Type 12 Wireway |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
| Weight | :Â Â | 16.5 |
Data Sheet
Data Sheet - Spec-00321 - NAM-CA
Data Sheet - Spec-01366 - NAM-CA
Downloads
Spec Sheet
Instruction Manual
Instruction Manual - 99401617 - NAM-US
