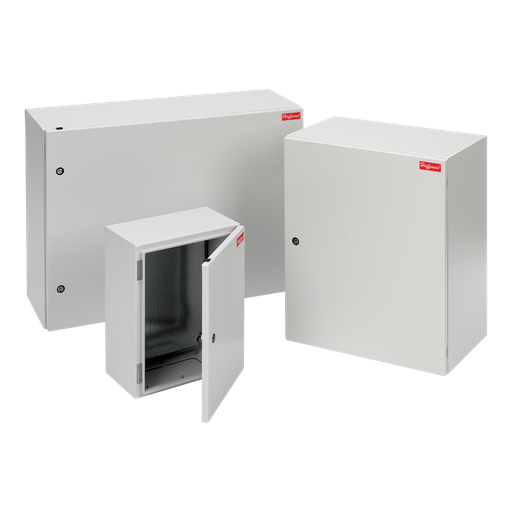

![Fusion G7 Type 4 and 12, 400x300X225, Lt Gray, Steel](https://media.distributordatasolutions.com/xml_nvent/2024q1/images/medium/2dbe722ae265c1da4555e059d47c9c6477ed39fe-medium.png)
Fusion G7 Type 4 and 12, 400x300X225, Lt Gray, Steel
MFG #G400300225G
$573.00Â /Â E
Each
Each
Product Description:
Fusion G7 enclosures offer metric dimensions, aesthetic styling and a gland plate for customer versatility. This Fusion G7 Type 4 and 12, G400300225G item measures 400x300X225mm with a material of Steel colored Lt Gray.
HESCO Part Number
HFG400300225G
UPC
783510189815
Manufacturer Part Number
G400300225G
Manufacturer
Hoffman
Fusion G7 Type 4 and 12, 400x300X225, Lt Gray, Steel
MFG #G400300225G
Product Description:
Fusion G7 enclosures offer metric dimensions, aesthetic styling and a gland plate for customer versatility. This Fusion G7 Type 4 and 12, G400300225G item measures 400x300X225mm with a material of Steel colored Lt Gray.
HESCO Part Number
HFG400300225G
UPC
783510189815
Manufacturer Part Number
G400300225G
Manufacturer
Hoffman
$573.00Â /Â E
Each
Each
- Features
- Specifications
- Resources
- Seamless foam-in-place gasket
- MAS0403021R5
- Reversible door with sealed hinges and hinge brackets
- G400P300H
- Gland plate(s) for enclosure bottom
- G400SMP225H
- Bonding provision on door; grounding studs (2) on body
- G400P300
- Full-height galvanized steel back panel included
- G400SMP225
- External formed 90-degree body flange channels away liquids
- GSP400300A
- Three-point latching on enclosures 1000-mm high and taller
- GKEY3MMDB
- Door alignment device on doors with 3-point latching and 800 mm or wider
- GPDLOCK3MM
- Pre-cut gland plate opening(s) in enclosure bottom
- CLKTM7
- Quarter-turn latch(es) with 3-mm double-bit insert
- CLKSLOT
- Corner-formed door
- CLKSM7
- Simple, easy-to-remove and install hinge pins with captivation clip
- CLKDBM3
- High-torque threadless studs and fasteners on door
- GPDLOCKHDL
- Wide assortment of user-friendly internal accessories to increase internal mounting area capability and design flexibility
- GPDLOCKSLOT
- Hardware kit includes grounding and sealing hardware
- ADP1
- Hinged on right side
- GHPINMS
- Installation instruction provided
- GHPINSS
- GSM5
- GDSTOPK
- GGP90180
- GGP150180
- GHS300225
- GGP150280
- GGP90280
- GDINRAILBKT
- ECW12B
- ECWTD8B
- ECW12Y
- GTBMTBKT300
- AS050
- ECW8Y
- CMFK
- ECW8BL
- ECWTD12B
- ECW12R
- CMTGFT
- ECW8R
- G50SMR225
- GSMRBKTS
- GAMR400
- CMFKSS
- ECW12BL
- ECW8B
Specifications
Length | :Â Â | 13.20 inch |
Width | :Â Â | 20.70 inch |
Height | :Â Â | 10.30 inch |
Weight | :Â Â | 19.20 pound |
Height (H) (inch) | :Â Â | 15.75 |
Height (H) (millimetre) | :Â Â | 400 |
Width (W) (inch) | :Â Â | 11.81 |
Width (W) (millimetre) | :Â Â | 300 |
Depth (D) (inch) | :Â Â | 8.86 |
Depth (D) (millimetre) | :Â Â | 225 |
Protection Rating | :Â Â | NEMA Type 12 |
Product Family | :Â Â | Fusion G7 |
Material | :Â Â | Mild Steel |
Finish | :Â Â | Powder Coated |
Color | :Â Â | Light Gray |
Color Code | :Â Â | RAL 7035 |
NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
Panel Size (D x E) (millimetre) | :Â Â | 355 x 255 |
Panel Size (D x E) (inch) | :Â Â | 13.98 x 10.04 |
Body Thickness (gauge) | :Â Â | 18 |
Body Thickness (millimetre) | :Â Â | 1.21 |
Door Thickness (gauge) | :Â Â | 18 |
Door Thickness (millimetre) | :Â Â | 1.21 |
Latch Type | :Â Â | Quarter-turn |
Modification Services | :Â Â | Yes |
Type Number | :Â Â | Type 4 |
IP Rating | :Â Â | IP66 |
Weight (pound) | :Â Â | 19.2 |
Sub Brand | :Â Â | Fusion G7 |
Size | :Â Â | 400x300X225mm |
Data Sheet
FUSION G7 Type 4 and 12 Spec Sheet NAM-CA English Spec-00539
FUSION G7 Type 4 and 12 Spec Sheet EMEA-EUR English Spec-00539
FUSION G7 Type 4 and 12 Spec Sheet ES NAM-US Spanish Spec-00541
Fusion G7 Type 4 et 12 Spec Sheet NAM-CA French Spec-01370
Instruction Manual
Fusion G7, Type 4, 12 Instruction Manual NAM-US English 87938355
Fusion G7, Type 4, 12 Instruction Manual NAM-CA English 87938355
Fusion G7, Type 4, 12 Instruction Manual EMEA-EUR English 87938355
Hinge Pin Kits Instruction Manual NAM-US English 87957771
Hinge Pin Kits Instruction Manual NAM-CA English 87957771
Hinge Pin Kits Instruction Manual EMEA-EUR English 87957771
Certificate
CERT-00074 NAM-US English CERT-00074
CERT-00074 NAM-CA English CERT-00074
CERT-00074 EMEA-EUR English CERT-00074
Declaration of Conformity: Fusion G7 NAM-US English CE-UKCA-00040_Fusion-G7
Declaration of Conformity: Fusion G7 NAM-CA English CE-UKCA-00040_Fusion-G7
Declaration of Conformity: Fusion G7 EMEA-EUR English CE-UKCA-00040_Fusion-G7
