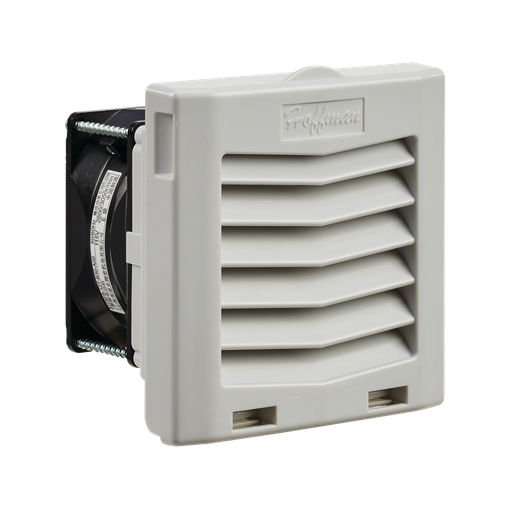

HF04 Side-Mount Filter Fan, 115V 21CFM, Lt Gray
MFG #HF0416414
$196.00Â /Â E
EACH
EACH
Product Description:
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF04 Side-Mount Filter Fan, HF0416414 item is rated 115V 21CFM colored Lt Gray.
HESCO Part Number
HFHF0416414
UPC
783510341923
Manufacturer Part Number
HF0416414
Manufacturer
Hoffman
HF04 Side-Mount Filter Fan, 115V 21CFM, Lt Gray
MFG #HF0416414
Product Description:
HF Side-Mount Filter Fans provide fresh air cooling, ease of installation and tool-less maintenance. This HF04 Side-Mount Filter Fan, HF0416414 item is rated 115V 21CFM colored Lt Gray.
HESCO Part Number
HFHF0416414
UPC
783510341923
Manufacturer Part Number
HF0416414
Manufacturer
Hoffman
$196.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Specifications
| Airflow | :Â Â | 36 |
| Nominal Voltage | :Â Â | 115 |
| Height (H) | :Â Â | 112 |
| Width (W) | :Â Â | 113 |
| Depth (D) | :Â Â | 93 |
| Max Current | :Â Â | 0.1 |
| Operating Temperature | :Â Â | -10 |
| Material | :Â Â | Plastic |
| Color | :Â Â | Light Gray |
| Color Code | :Â Â | RAL 7035 |
| Weight | :Â Â | 1.5 |
| Size | :Â Â | 4.42 x 4.44 x 3.65 in |
| Flow Rate | :Â Â | 21 CFM |
| Voltage Rating | :Â Â | 115 VAC |
| Amperage Rating | :Â Â | 0.1 A |
| Housing Material | :Â Â | Non-metallic |
| Finish | :Â Â | Lt Gray |
- Click-Fit design quickly installs into enclosure wall; no tools or screws required
- Opens with the flick of a finger for easy filter replacement
- Enclosure side wall mounting
- Reverse airflow option on HF13 models available to push/pull air through higher static pressure
- Standard rope gasket provides proper seal to the enclosure
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
- Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
- Service life hours from 40,000 to 100,000 hours
- Operating temperature range of -4 F/-20 C to 149 F/65 C
Specifications
Airflow :Â Â 36 Nominal Voltage :Â Â 115 Height (H) :Â Â 112 Width (W) :Â Â 113 Depth (D) :Â Â 93 Max Current :Â Â 0.1 Operating Temperature :Â Â -10 Material :Â Â Plastic Color :Â Â Light Gray Color Code :Â Â RAL 7035 Weight :Â Â 1.5 Size :Â Â 4.42 x 4.44 x 3.65 in Flow Rate :Â Â 21 CFM Voltage Rating :Â Â 115 VAC Amperage Rating :Â Â 0.1 A Housing Material :Â Â Non-metallic Finish :Â Â Lt Gray - Downloads
Spec Sheet
Instruction ManualInstruction Manual - 89134973 - NAM-US
Data SheetData Sheet - Spec-01170 - NAM-CAData Sheet - Spec-01423 - NAM-CA
CertificateCertificate - E482010-20160430-CoC_HF_HG_Fan - NAM-USCertificate - CE-UKCA-00166_Filter-Fan - NAM-US
