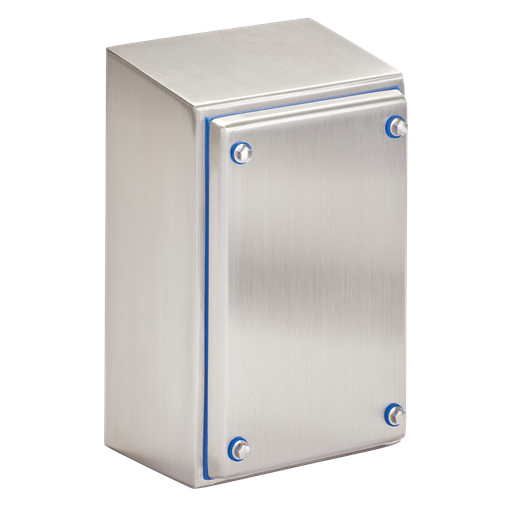

HyShed Screw Cover Enclosures Type 4X, 13.13x10.13x6.00, Stainless Steel 304
MFG #HSDS131006SS
$1,340.00Â /Â E
EACH
EACH
Product Description:
HyShed 4X, IP69 enclosures are designed for high pressure temperature washdown in food and beverage. This HyShed Screw Cover Enclosures Type 4X, HSDS131006SS item measures 13.13x10.13x6.00 inches with a material of Stainless Steel 304.
HESCO Part Number
HFHSDS131006SS
UPC
783510305185
Manufacturer Part Number
HSDS131006SS
Manufacturer
Hoffman
HyShed Screw Cover Enclosures Type 4X, 13.13x10.13x6.00, Stainless Steel 304
MFG #HSDS131006SS
Product Description:
HyShed 4X, IP69 enclosures are designed for high pressure temperature washdown in food and beverage. This HyShed Screw Cover Enclosures Type 4X, HSDS131006SS item measures 13.13x10.13x6.00 inches with a material of Stainless Steel 304.
HESCO Part Number
HFHSDS131006SS
UPC
783510305185
Manufacturer Part Number
HSDS131006SS
Manufacturer
Hoffman
$1,340.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Brushed #4 finish for dairy applications
- 10-degree sloped top facilitates runoff of water and cleaning solutions; prevents fluids or particulates from pooling
- Door edges are sloped to facilitate runoff
- Replaceable FDA-grade silicone gasket compliant with FDA Guideline 21 CFR 177.2600
- Gasket is sanitary Pantone 287 blue color for easy detection by common food scanning equipment and vision systemsa
- Screw FDA-grade silicone o-ring gasket maintains strong seal; includes captivation mechanism to keep screws in place and prevent over-torquing
- Stainless steel crevice-free screw surfaces to reduce bacteria harboring catch points; uses standard tool to open
- Solid back with no pre-tapped mounting holes for easy weld mounting; optional IP69K sanitary stand-off kit available.
- Seams continuously welded and ground smooth
- Bonding provision on door and body
- Furnished hardware kit consists of panel mounting kit and grounding kit
Specifications
| Height (H) | :Â Â | 334 |
| Width (W) | :Â Â | 257 |
| Depth (D) | :Â Â | 152 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | HyShed |
| Material | :Â Â | Stainless Steel 304 |
| Finish | :Â Â | #4 Dairy |
| Thickness (T) | :Â Â | 1.98 |
| Cover Screw Quantity | :Â Â | 8 |
| Weight | :Â Â | 13.2 |
| IP Rating | :Â Â | IP66 |
| NEMA Rating | :Â Â | 12 Indoor, dust-resistant |
