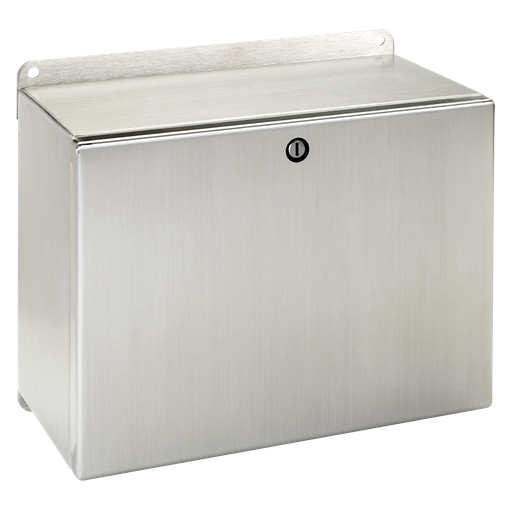

InLine Landscape Enclousre Type 4X, 230x600x155mm, Brushed, SS304
MFG #LHC236016SS
$941.00Â /Â E
EACH
EACH
Product Description:
InLine stainless steel enclosure great for many applications where a landscape orientation is ideal. This InLine Landscape Enclousre Type 4X, LHC236016SS item measures 230x600x155mm with a material of SS304, Brushed.
HESCO Part Number
HFLHC236016SS
UPC
783510110383
Manufacturer Part Number
LHC236016SS
Manufacturer
Hoffman
InLine Landscape Enclousre Type 4X, 230x600x155mm, Brushed, SS304
MFG #LHC236016SS
Product Description:
InLine stainless steel enclosure great for many applications where a landscape orientation is ideal. This InLine Landscape Enclousre Type 4X, LHC236016SS item measures 230x600x155mm with a material of SS304, Brushed.
HESCO Part Number
HFLHC236016SS
UPC
783510110383
Manufacturer Part Number
LHC236016SS
Manufacturer
Hoffman
$941.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Full width bracket for mounting flexibility
- Seams continuously welded and ground smooth
- External formed body flange trough
- Large perimeter body opening
- Mounting brackets are spot-welded to top and bottom of enclosure
- Mounting brackets have predrilled mounting holes; customer-specific location holes can be drilled for mounting flexibility
- Seamless foam-in-place gasket
- M6 ground stud with base flange on body; M6 bonding provision with base flange on door
- Furnished hardware kit includes panel mounting screws and grounding hardware
- Hinged door with removable hinge pins and self-grounding quarter-turn latch system with double seal
- Door opens 180 degrees
- Window door models include 3/16-in. (4.8-mm) clear polycarbonate window mounted flush with door surface
Specifications
| Height (H) | :Â Â | 230 |
| Width (W) | :Â Â | 600 |
| Depth (D) | :Â Â | 155 |
| Protection Rating | :Â Â | NEMA Type 12 |
| Product Family | :Â Â | InLine |
| Finish | :Â Â | Brushed #4 |
| Body Thickness | :Â Â | 1.98 |
| Door Thickness | :Â Â | 1.59 |
| Clear Space Above Panel | :Â Â | 5.51 |
| Mounting Hole Size | :Â Â | 22.5 |
| Mounting Studs (J) | :Â Â | 21.88 |
| Cover Style | :Â Â | Solid |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 4X |
| IP Rating | :Â Â | IP66 |
| Weight | :Â Â | 19 |
| Sub Brand | :Â Â | InLine |
| Material | :Â Â | Stainless Steel |
| Size | :Â Â | 230x600x155mm |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
Certificate
Certificate - CERT-00274 - NAM-US
Certificate - CERT-00099 - NAM-US
Certificate - CE-UKCA-00031_Inline - NAM-US
Downloads
Spec Sheet
Data Sheet
Data Sheet - HOFFMAN-SPEC-00363-InlineLandscapeType4X-EN - NAM-CA
Data Sheet - Spec-00823 - NAM-US
Data Sheet - Spec-01382 - NAM-CA
Instruction Manual
Instruction Manual - 87565270 - NAM-US
