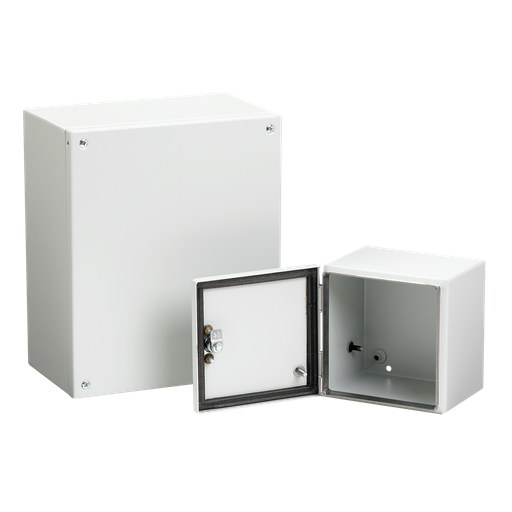

InLine EMC Enclosure Screw Cover Type 1, 250x200x150mm, Light Gray, Mild Steel
MFG #LSC252015EMC
$648.00Â /Â E
EACH
EACH
Product Description:
Whether protecting components from a signal or containing a signal, InLine EMC Enclosures have you protected. This InLine EMC Enclosure Screw Cover Type 1, LSC252015EMC Enclosure item measures 250x200x150mm with a material of Steel colored Lt Gray.
HESCO Part Number
HFLSC252015EMC
UPC
783510300395
Manufacturer Part Number
LSC252015EMC
Manufacturer
Hoffman
InLine EMC Enclosure Screw Cover Type 1, 250x200x150mm, Light Gray, Mild Steel
MFG #LSC252015EMC
Product Description:
Whether protecting components from a signal or containing a signal, InLine EMC Enclosures have you protected. This InLine EMC Enclosure Screw Cover Type 1, LSC252015EMC Enclosure item measures 250x200x150mm with a material of Steel colored Lt Gray.
HESCO Part Number
HFLSC252015EMC
UPC
783510300395
Manufacturer Part Number
LSC252015EMC
Manufacturer
Hoffman
$648.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Bonding provision on cover and body
- Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
- Plated interior surfaces for gasket contact areas and conduit entries
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
- Shielding effectiveness greater than 50 dB at 1 GHz
- INLINE EMC Screw-Cover Enclosures:
- Captivated cover screws with sealing bushings
- Integral gasket compression stops
- INLINE EMC Hinged-Door Enclosures:
- Door opens 180 degrees
- Removable hinged door
- Self-grounding, slotted quarter-turn latch
- Finish: Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
- Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373 part 15, MIL-STD-285
Specifications
| Height (H) | :Â Â | 250 |
| Width (W) | :Â Â | 200 |
| Depth (D) | :Â Â | 150 |
| Protection Rating | :Â Â | NEMA Type 1 |
| Product Family | :Â Â | InLine |
| Finish | :Â Â | Powder Coated |
| Color Code | :Â Â | RAL 7035 |
| Thickness (T) | :Â Â | 1.5 |
| Mounting (G x H) | :Â Â | 232 x 135 |
| Modification Services | :Â Â | Yes |
| Type Number | :Â Â | Type 12 |
| IP Rating | :Â Â | IP54 |
| NEMA Rating | :Â Â | 1 Indoor, electrical protection |
| Weight | :Â Â | 7.1 |
| Sub Brand | :Â Â | InLine |
| Material | :Â Â | Steel |
| Size | :Â Â | 250x200x150mm |
| Color | :Â Â | LtGray |
- Seams continuously welded and ground smooth
- External formed body flange channels away liquids
- Large perimeter body opening
- Mounting holes in back of body for direct mounting or optional external mounting brackets
- Bonding provision on cover and body
- Metalized non-woven fabric EMI/RFI material covering UL94HP-rated urethane foam gasket
- Plated interior surfaces for gasket contact areas and conduit entries
- Hardware kit includes panel mounting screws, grounding hardware and sealing washers for wall-mounting holes
- Installation instructions
- Shielding effectiveness greater than 50 dB at 1 GHz
- INLINE EMC Screw-Cover Enclosures:
- Captivated cover screws with sealing bushings
- Integral gasket compression stops
- INLINE EMC Hinged-Door Enclosures:
- Door opens 180 degrees
- Removable hinged door
- Self-grounding, slotted quarter-turn latch
- Finish: Textured RAL 7035 light-gray polyester powder paint inside and out over a plated interior
- Shielding effectiveness tested in accordance with: IEEE 299, VG 95-373 part 15, MIL-STD-285
Specifications
Height (H) :Â Â 250 Width (W) :Â Â 200 Depth (D) :Â Â 150 Protection Rating :Â Â NEMA Type 1 Product Family :Â Â InLine Finish :Â Â Powder Coated Color Code :Â Â RAL 7035 Thickness (T) :Â Â 1.5 Mounting (G x H) :Â Â 232 x 135 Modification Services :Â Â Yes Type Number :Â Â Type 12 IP Rating :Â Â IP54 NEMA Rating :Â Â 1 Indoor, electrical protection Weight :Â Â 7.1 Sub Brand :Â Â InLine Material :Â Â Steel Size :Â Â 250x200x150mm Color :Â Â LtGray - Instruction Manual
Instruction Manual - 47334001 - NAM-USInstruction Manual - 47335001 - NAM-US
CertificateCertificate - CERT-00097 - NAM-USCertificate - CE-UKCA-00012_Inline-Dbox - NAM-US
DownloadsSpec Sheet
Data SheetData Sheet - Spec-00243 - NAM-CA
