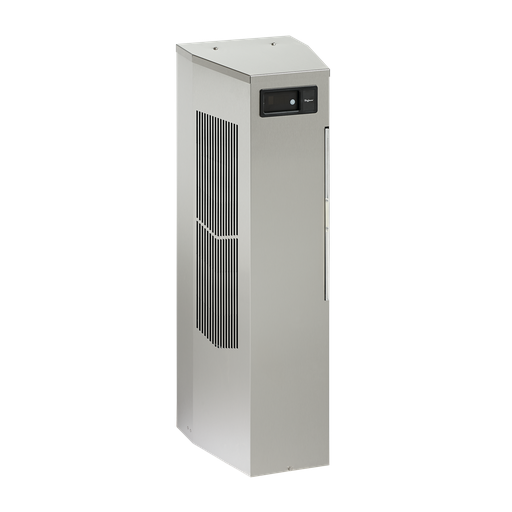

SpectraCool Narrow Indoor/Outdoor AC with Heat, 8000BTU 460V, Brushed, SS304
MFG #N360846G151
$10,974.00Â /Â E
EACH
EACH
Product Description:
SpectraCool Narrow Indoor/Outdoor ACs provide space-saving solution on low-depth cabinets. This SpectraCool Narrow Indoor/Outdoor AC with Heat, N360846G151 item is rated 8000BTU 460V with material of SS304 finish Brushed.
HESCO Part Number
HFN360846G151
UPC
783510239633
Manufacturer Part Number
N360846G151
Manufacturer
Hoffman
SpectraCool Narrow Indoor/Outdoor AC with Heat, 8000BTU 460V, Brushed, SS304
MFG #N360846G151
Product Description:
SpectraCool Narrow Indoor/Outdoor ACs provide space-saving solution on low-depth cabinets. This SpectraCool Narrow Indoor/Outdoor AC with Heat, N360846G151 item is rated 8000BTU 460V with material of SS304 finish Brushed.
HESCO Part Number
HFN360846G151
UPC
783510239633
Manufacturer Part Number
N360846G151
Manufacturer
Hoffman
$10,974.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
- Energy efficient rotary compressor on N36 and N43 models
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
Specifications
| Nominal Capacity Btu/h | :Â Â | 8,500 |
| Nominal Capacity Watts | :Â Â | 2,401 |
| Refrigerant | :Â Â | R513A |
| Corrosion Resistant | :Â Â | No |
| Nominal Voltage | :Â Â | 460 |
| Number of Phases | :Â Â | 3 |
| Material | :Â Â | Stainless Steel 304 |
| Finish | :Â Â | Brushed #3 |
| Thickness (T) | :Â Â | 1.21 |
| Height (H) | :Â Â | 914 |
| Width (W) | :Â Â | 292 |
| Depth (D) | :Â Â | 356 |
| Operating Temperature | :Â Â | -40 |
| Ambient Temperature | :Â Â | -40 |
| Max Current | :Â Â | 3 |
| Mounting | :Â Â | Side wall |
| Outdoor Installation | :Â Â | Yes |
| Remote Access Control | :Â Â | No |
| Protection Rating | :Â Â | NEMA Type 4X |
| Product Family | :Â Â | SpectraCool |
| NEMA Rating | :Â Â | 4X Watertight, corrosion-resistant |
| Weight | :Â Â | 114 |
| Sub Brand | :Â Â | SpectraCool |
Certificate
Certificate - CE-UKCA-00150_AC-Narrow - NAM-US
Data Sheet
Data Sheet - N Series Spec-00732 (1) - NAM-CA
Data Sheet - Spec-01221 - NAM-US
Data Sheet - Spec-01383 - NAM-CA
Instruction Manual
Instruction Manual - 89215758 - NAM-US
Instruction Manual - 89246227_A - NAM-US
Instruction Manual - 89166235 - NAM-US
