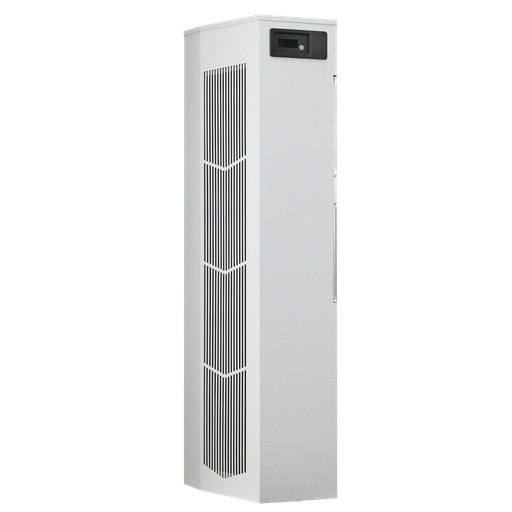

SpectraCool Narrow Indoor/Outdoor AC without Heat, 11000 BTU 115V, Lt Gray, Steel
MFG #N431216G100
$9,559.00Â /Â E
EACH
EACH
Product Description:
SpectraCool Narrow Indoor/Outdoor ACs provide space-saving solution on low-depth cabinets. This SpectraCool Narrow Indoor/Outdoor AC without Heat, N431216G100 item is rated 11000 BTU 115V with material of Steel color Lt Gray.
HESCO Part Number
HFN431216G100
UPC
783510238872
Manufacturer Part Number
N431216G100
Manufacturer
Hoffman
SpectraCool Narrow Indoor/Outdoor AC without Heat, 11000 BTU 115V, Lt Gray, Steel
MFG #N431216G100
Product Description:
SpectraCool Narrow Indoor/Outdoor ACs provide space-saving solution on low-depth cabinets. This SpectraCool Narrow Indoor/Outdoor AC without Heat, N431216G100 item is rated 11000 BTU 115V with material of Steel color Lt Gray.
HESCO Part Number
HFN431216G100
UPC
783510238872
Manufacturer Part Number
N431216G100
Manufacturer
Hoffman
$9,559.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
- Energy efficient rotary compressor on N36 and N43 models
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
Specifications
| Nominal Capacity Btu/h | :Â Â | 11,000 |
| Nominal Capacity Watts | :Â Â | 3,223 |
| Refrigerant | :Â Â | R134a |
| Corrosion Resistant | :Â Â | No |
| Nominal Voltage | :Â Â | 115 |
| Number of Phases | :Â Â | 1 |
| Material | :Â Â | Mild Steel |
| Finish | :Â Â | Powder Coated |
| Thickness (T) | :Â Â | 1.21 |
| Height (H) | :Â Â | 1,092 |
| Width (W) | :Â Â | 292 |
| Depth (D) | :Â Â | 356 |
| Operating Temperature | :Â Â | -40 |
| Ambient Temperature | :Â Â | -40 |
| Max Current | :Â Â | 20.8 |
| Mounting | :Â Â | Side wall |
| Outdoor Installation | :Â Â | Yes |
| Remote Access Control | :Â Â | No |
| Protection Rating | :Â Â | NEMA Type 4 |
| Product Family | :Â Â | SpectraCool |
| Color Code | :Â Â | RAL 7035 |
| NEMA Rating | :Â Â | 4 Watertight |
| Weight | :Â Â | 138 |
| Sub Brand | :Â Â | SpectraCool |
| Color | :Â Â | Lt Gray |
Instruction Manual
Instruction Manual - 89215760 - NAM-US
Instruction Manual - 89246228_A - NAM-US
Instruction Manual - 89166236 - NAM-US
Certificate
Certificate - CE-UKCA-00150_AC-Narrow - NAM-US
Data Sheet
Data Sheet - N Series Spec-00732 (1) - NAM-CA
Data Sheet - Spec-01221 - NAM-US
Data Sheet - Spec-01383 - NAM-CA
