Grid Strap G2 3-Row 800mm

Grid Strap G2 3-Row 800mm

MFG #P2G3R8

$147.50 / E
Each
Product Description:

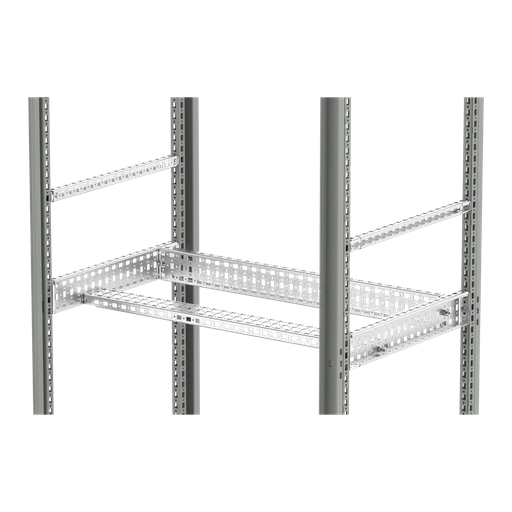

ProLine G2 Grid Straps can be used to create a mounting or support network within the frame. This ProLine G2 Grid Strap 3-Row, P2G3R8 item measures 800mm with a material of Steel, Galvanized.
HESCO Part Number
HFP2G3R8
UPC
783510318833
Manufacturer Part Number
P2G3R8
Manufacturer
Hoffman

Grid Strap G2 3-Row 800mm

MFG #P2G3R8

$147.50 / E
Each
Product Description:
ProLine G2 Grid Straps can be used to create a mounting or support network within the frame. This ProLine G2 Grid Strap 3-Row, P2G3R8 item measures 800mm with a material of Steel, Galvanized.
HESCO Part Number
HFP2G3R8
UPC
783510318833
Manufacturer Part Number
P2G3R8
Manufacturer
Hoffman

Grid Strap G2 3-Row 800mm

MFG #P2G3R8

Product Description:
ProLine G2 Grid Straps can be used to create a mounting or support network within the frame. This ProLine G2 Grid Strap 3-Row, P2G3R8 item measures 800mm with a material of Steel, Galvanized.
HESCO Part Number
HFP2G3R8
UPC
783510318833
Manufacturer Part Number
P2G3R8
Manufacturer
Hoffman
$147.50 / E
Each
  • Quick installation of grid strap(s) using the patented front-load BV-M6 fastener (Blind, Variable M6 screw based fastener), which is an innovative alternative to cage nuts or self-tapping screws
  • Mounting hole pattern is 25-mm on center, alternating round and rectangular holes to accommodate various hardware: rectangular holes accept BV-M6 fasteners or front-loading cage nuts
  • Horizontal grid straps are offered in both 1-row and 3-row configurations, as well as bracket or tabbed (single-piece) mounting options
  • Width-mounting Grid Straps requires an increase in length of 100mm over the nominal frame width (i.e. 600mm wide enclosure requires 700mm grid strap)
  • Horizontal, Bracket-Mount Grid Straps: Mounting brackets are installed using a single BV-M6 (or front-loading cage nut) per bracket. Grid Strap hooks onto the mounted brackets, and snaps into place for easy installation; this design Grid Strap can be mounted vertically between other Grid Straps, as the assembly is on a single plane
  • Horizontal, Tab-Mount, Single-Piece Grid Straps: Grid Strap is constructed from a single piece, with a jogged tab that allows the Grid Strap to sit flush with the frame; this design Grid Strap should not be used when mounting vertically between other Grid Straps, as the jogged tab introduces a second plane which may interfere with cover installation on the sides
  • Furnished in pairs, and constructed from 14 gauge (1.75mm) conductive steel
