Window Doors for Upper Front, 21" monitor, fits 1800x600mm PC, Painted
MFG #PDWTL96PC
$1,647.00Â /Â E
EACH
EACH
Product Description:

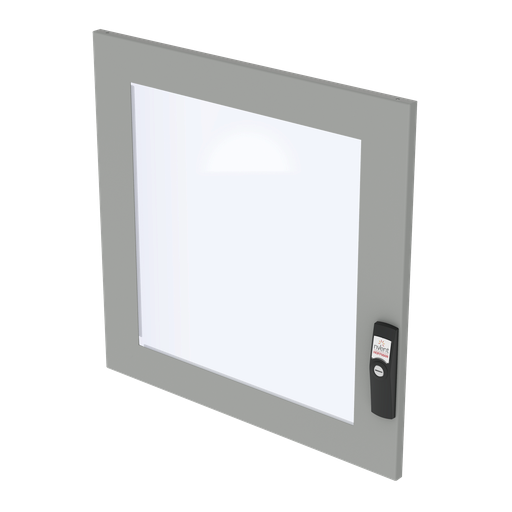

Window Doors fit on the upper front of the PC frame and are hinged on the left side. A 2-point latch system is operated by a Small Flush Bezel with tool-to-open insert located on the lower right side of the door. Other inserts and a Flush Swing Handle are also available.
HESCO Part Number
HFPDWTL96PC
UPC
783510308698
Manufacturer Part Number
PDWTL96PC
Manufacturer
Hoffman
Window Doors for Upper Front, 21" monitor, fits 1800x600mm PC, Painted
MFG #PDWTL96PC
Product Description:
Window Doors fit on the upper front of the PC frame and are hinged on the left side. A 2-point latch system is operated by a Small Flush Bezel with tool-to-open insert located on the lower right side of the door. Other inserts and a Flush Swing Handle are also available.
HESCO Part Number
HFPDWTL96PC
UPC
783510308698
Manufacturer Part Number
PDWTL96PC
Manufacturer
Hoffman
$1,647.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Doors have .25-in.-thick clear safety glass windows
- Foam-in-place gaskets for an effective seal
Specifications
Product Family | :Â Â | ProLine |
Window Size (M x N) | :Â Â | 17.17 x 17.76 |
Fits PC Frame | :Â Â | 1800 x 600 |
Modification Services | :Â Â | Yes |
Weight | :Â Â | 22 |
Color Code | :Â Â | RAL 7035 |
Finish | :Â Â | Powder Coated |
Thickness (T) | :Â Â | 1.9 |
Works With | :Â Â | NEMA |
Sub Brand | :Â Â | ProLine |
Material | :Â Â | Steel |
Size | :Â Â | fits 1800x600mm PC in |
Color | :Â Â | LtGray |
Downloads
Spec Sheet
Data Sheet
Data Sheet - Spec-01206 - NAM-CA
Instruction Manual
Instruction Manual - 60127047 - NAM-US

Data Sheet

Instruction Manual

- Doors have .25-in.-thick clear safety glass windows
- Foam-in-place gaskets for an effective seal
Specifications
Product Family :Â Â ProLine Window Size (M x N) :Â Â 17.17 x 17.76 Fits PC Frame :Â Â 1800 x 600 Modification Services :Â Â Yes Weight :Â Â 22 Color Code :Â Â RAL 7035 Finish :Â Â Powder Coated Thickness (T) :Â Â 1.9 Works With :Â Â NEMA Sub Brand :Â Â ProLine Material :Â Â Steel Size :Â Â fits 1800x600mm PC in Color :Â Â LtGray - Downloads
Spec Sheet
Data SheetData Sheet - Spec-01206 - NAM-CA
Instruction ManualInstruction Manual - 60127047 - NAM-US
