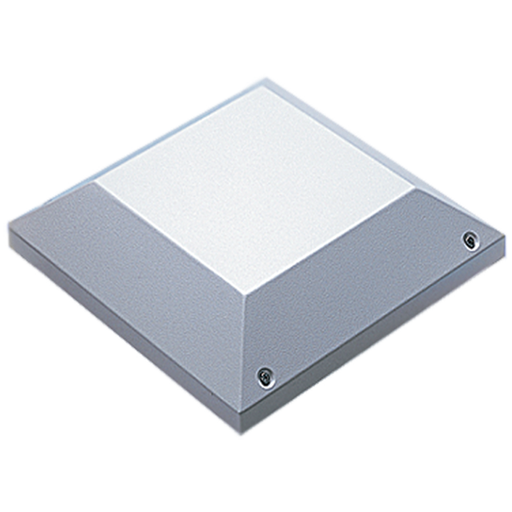

ProLine Top with Cutout for High-Performance Pagoda Exhaust Vent, EMC
MFG #PPTHP1EMC
$3,389.00Â /Â E
EACH
EACH
Product Description:
Vents fit on standard ProLine top with vent cutout or can be field-installed on any ProLine solid top. The Pagoda Vent features an integral centrifugal blower mounted in a housing that includes a drip-proof removable hood, wire mesh finger guard, perimeter gasket and terminal block. Electromagnetic-compatible (EMC) Pagoda Vents include a conductive screen, conductive gasket, line filter and 6-ft. power cord with stripped leads.
HESCO Part Number
HFPPTHP1EMC
UPC
783510276799
Manufacturer Part Number
PPTHP1EMC
Manufacturer
Hoffman
ProLine Top with Cutout for High-Performance Pagoda Exhaust Vent, EMC
MFG #PPTHP1EMC
Product Description:
Vents fit on standard ProLine top with vent cutout or can be field-installed on any ProLine solid top. The Pagoda Vent features an integral centrifugal blower mounted in a housing that includes a drip-proof removable hood, wire mesh finger guard, perimeter gasket and terminal block. Electromagnetic-compatible (EMC) Pagoda Vents include a conductive screen, conductive gasket, line filter and 6-ft. power cord with stripped leads.
HESCO Part Number
HFPPTHP1EMC
UPC
783510276799
Manufacturer Part Number
PPTHP1EMC
Manufacturer
Hoffman
$3,389.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Integral centrifugal blower mounted in a protective housing
- Can be installed on any ProLine or ProLine G2 solid top
- Drip-protected, raised cover is removable from the inside of the enclosure
- Housing includes a drip-proof removable hood, wire mesh finger guard and perimeter gasket
- Lead wire or power cord options
- 115V or 230V versions
- Rated UL Type 1; installing this component on an enclosure brings the enclosure rating to UL Type 1
- Installation hardware included
Specifications
Product Family | :Â Â | ProLine |
Material | :Â Â | Mild Steel |
Voltage AC | :Â Â | 115 |
Full Load | :Â Â | 1.7 |
Use With | :Â Â | Top with high-performance pagoda vent cutout on EMC enclosures |
Modification Services | :Â Â | Yes |
IP Rating | :Â Â | IP55 |
Weight | :Â Â | 26 |
Color | :Â Â | Light Gray |
Color Code | :Â Â | RAL 7035 |
Thickness (T) | :Â Â | 1.52 |
Works With | :Â Â | NEMA |
Sub Brand | :Â Â | ProLine |
Voltage Rating | :Â Â | 115 |
Housing Material | :Â Â | Mild Steel |
Finish | :Â Â | Lt Gray |
Certificate
Certificate - CE-UKCA-00094_Accy-Enclosure - NAM-US
Certificate - CE-UKCA-00067_Proline-EMI - NAM-US
Data Sheet
Data Sheet - Spec-00212 - NAM-CA
Instruction Manual
Instruction Manual - 87540639 - NAM-US
Downloads
Spec Sheet


Data Sheet

Instruction Manual

Downloads

- Integral centrifugal blower mounted in a protective housing
- Can be installed on any ProLine or ProLine G2 solid top
- Drip-protected, raised cover is removable from the inside of the enclosure
- Housing includes a drip-proof removable hood, wire mesh finger guard and perimeter gasket
- Lead wire or power cord options
- 115V or 230V versions
- Rated UL Type 1; installing this component on an enclosure brings the enclosure rating to UL Type 1
- Installation hardware included
Specifications
Product Family :Â Â ProLine Material :Â Â Mild Steel Voltage AC :Â Â 115 Full Load :Â Â 1.7 Use With :Â Â Top with high-performance pagoda vent cutout on EMC enclosures Modification Services :Â Â Yes IP Rating :Â Â IP55 Weight :Â Â 26 Color :Â Â Light Gray Color Code :Â Â RAL 7035 Thickness (T) :Â Â 1.52 Works With :Â Â NEMA Sub Brand :Â Â ProLine Voltage Rating :Â Â 115 Housing Material :Â Â Mild Steel Finish :Â Â Lt Gray - Certificate
Certificate - CE-UKCA-00094_Accy-Enclosure - NAM-US
Certificate - CE-UKCA-00067_Proline-EMI - NAM-US
Data SheetData Sheet - Spec-00212 - NAM-CA
Instruction ManualInstruction Manual - 87540639 - NAM-US
DownloadsSpec Sheet
