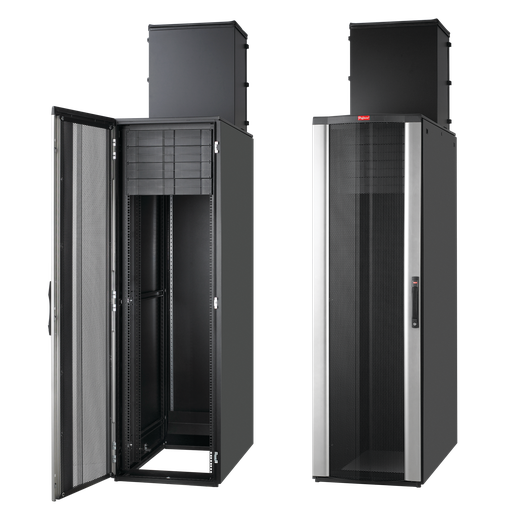

ProLine FloTek TD (Top Duct) Server Cabinet BM, 78.37x23.94x47.22, Black, Steel
MFG #PSTD20612BM
$6,595.00Â /Â E
EACH
EACH
Product Description:
ProLine FloTek TD improves efficiency lowering energy costs by directing hot exhaust up the plenum. This ProLine FloTek TD (Top Duct) Server Cabinet BM, PSTD20612BM item measures 78.37x23.94x47.22in with a material of Steel colored Black.
HESCO Part Number
HFPSTD20612BM
UPC
783510192747
Manufacturer Part Number
PSTD20612BM
Manufacturer
Hoffman
ProLine FloTek TD (Top Duct) Server Cabinet BM, 78.37x23.94x47.22, Black, Steel
MFG #PSTD20612BM
Product Description:
ProLine FloTek TD improves efficiency lowering energy costs by directing hot exhaust up the plenum. This ProLine FloTek TD (Top Duct) Server Cabinet BM, PSTD20612BM item measures 78.37x23.94x47.22in with a material of Steel colored Black.
HESCO Part Number
HFPSTD20612BM
UPC
783510192747
Manufacturer Part Number
PSTD20612BM
Manufacturer
Hoffman
$6,595.00Â /Â E
EACH
EACH
- Features
- Specifications
- Resources
- Designed for use with 19-in. rack-mounted servers, blade servers and other equipment
- Adjustable top duct (chimney) is provided in two different standard heights to fit various Data Center ceilings
- Chimney is pre-assembled and shipped inside the cabinet to ease assembly and avoid extra parcels and shipping damage
- S-connectors provided with chimney to facilitate connection to HVAC duct work
- Edge gasket provided with chimney to prevent hot exhaust gas from mixing with cold airflow
- Cabinet is provided with seals and blocking panels to eliminate cold air bypass
- Includes two sets of fully adjustable mounting angles which are RU marked front and back to facilitate assembly
- Open base allows under-floor cable entry
- Fully perforated front door provides unrestricted cold airflow to equipment
- Front sealed 19-in. mounting rails and top/bottom air blocking plates prevent cold air bypass
- Solid rear door directs hot exhaust into chimney to prevent mixing with cold airflow
- Data center efficiency increases when cold and hot airflows are kept separate resulting in higher CRAC temperatures (cold airflow to the equipment)
- Reduces overall energy needs with more efficient cold air delivery to equipment
- Allows increased thermal loads and higher server densities inside cabinet
- Can be used on raised and non-raised floors
- Top sliding gland plate accommodates cables, cable bundles and pre-terminated patch panels
- Chimney provided with edge gasket and S-connectors
- Attractive, rigid front door made of aluminum extrusions and formed perforated steel, with more than 60 percent open space for free flow of cool air to equipment
- Front door is left-hinged and reversible
- Front and rear doors have keyed multi-point vault-style latch system and central key lock to ensure security
- Solid rear door is fully gasketed to ensure all hot exhaust is directed to top duct
- Front air dam surrounds mounting rack angles to prevent cold air bypass
- Top and sides are formed steel
- Rack angles have .375-in. spaced square holes per EIA standards
Specifications
| Height (H) | :Â Â | 1,991 |
| Width (W) | :Â Â | 608 |
| Depth (D) | :Â Â | 1,199 |
| Color Code | :Â Â | RAL 9005 |
| Thickness (T) | :Â Â | 1.5 |
| Rack Units | :Â Â | 42 |
| Min H | :Â Â | 2,600 |
| Modification Services | :Â Â | Yes |
| Product Family | :Â Â | ProLine |
| Weight | :Â Â | 446 |
| Sub Brand | :Â Â | ProLine |
| Height | :Â Â | 78.37 inch |
| Width | :Â Â | 23.94 inch |
| Depth | :Â Â | 47.22 inch |
| Thickness | :Â Â | 16 ga. |
| Material | :Â Â | Mild Steel |
| Finish | :Â Â | Powder Coated |
| Color | :Â Â | Jet Black RAL 9005 |
| Mounting | :Â Â | Free Standing |
| Face Plate | :Â Â | No |
| Frame | :Â Â | Yes |
| Cable Entry | :Â Â | Yes |
| NEMA Rating | :Â Â | Type 1 |
