Hoffman

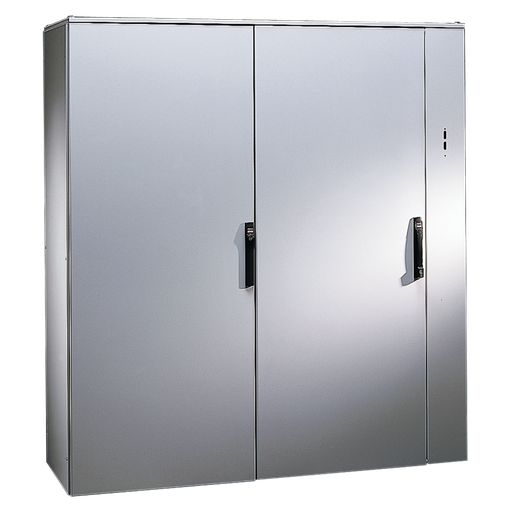

ProLine-DD Disconnect Enclosure Type 12, 2000x1800x500, Lt Gray, Steel
MFG #PTDDC20185
$10,025.00 / E
EACH
EACH
Product Description:
ProLine Disconnect Packages are ready-to-use enclosures offering flange-mount disconnect solutions. This ProLine-DD Disconnect Enclosure Type 12, PTDDC20185 item measures 2000x1800x500mm with material of Steel colored Lt Gray.
HESCO Part Number
HFPTDDC20185
UPC
783510226091
Manufacturer Part Number
PTDDC20185
Manufacturer
Hoffman
Hoffman
ProLine-DD Disconnect Enclosure Type 12, 2000x1800x500, Lt Gray, Steel
MFG #PTDDC20185
Product Description:
ProLine Disconnect Packages are ready-to-use enclosures offering flange-mount disconnect solutions. This ProLine-DD Disconnect Enclosure Type 12, PTDDC20185 item measures 2000x1800x500mm with material of Steel colored Lt Gray.
HESCO Part Number
HFPTDDC20185
UPC
783510226091
Manufacturer Part Number
PTDDC20185
Manufacturer
Hoffman
$10,025.00 / E
EACH
EACH
- Features
- Specifications
- Resources
- Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
- Standard door bars increase strength and rigidity and allow for an extra mounting options
- Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
- Gasket and latching system together ensure a solid seal with low closure force
- Mullion door is hinged on the right, with primary and secondary doors hinged on the left
- Galvanized mounting plate in 3.0mm steel supplied standard
- Capped ground studs on door, rear and top panel
- Integral frame channels support the full weight of the mounting plates
- Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
- Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
- Rear panel(s) and solid top 1.5 mm, carbon steel powder painted; RAL 7035
- Compatible with any of the standard flange-mounted disconnect switches and mechanisms described in the Preferred Cutout Overview section.
Specifications
| Height (H) | : | 2,000 |
| Width (W) | : | 1,800 |
| Depth (D) | : | 500 |
| Protection Rating | : | NEMA Type 12 |
| Product Family | : | ProLine |
| Finish | : | Powder Coated |
| Color Code | : | RAL 7035 |
| Thickness (T) | : | 1.9 |
| Cutout Type | : | Small |
| Modification Services | : | Yes |
| Type Number | : | Type 12 |
| IP Rating | : | IP55 |
| NEMA Rating | : | 12 Indoor, dust-resistant |
| Weight | : | 553 |
| Sub Brand | : | ProLine |
| Material | : | Steel |
| Size | : | 2000x1800x500mm |
| Color | : | LtGray |
- Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard
- Standard door bars increase strength and rigidity and allow for an extra mounting options
- Seamless foam-in-place gasket provides a protective seal against moisture and contaminants
- Gasket and latching system together ensure a solid seal with low closure force
- Mullion door is hinged on the right, with primary and secondary doors hinged on the left
- Galvanized mounting plate in 3.0mm steel supplied standard
- Capped ground studs on door, rear and top panel
- Integral frame channels support the full weight of the mounting plates
- Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035
- Door thickness 14 gauge/2.0 mm, carbon steel powder painted – for details please check reference tables
- Rear panel(s) and solid top 1.5 mm, carbon steel powder painted; RAL 7035
- Compatible with any of the standard flange-mounted disconnect switches and mechanisms described in the Preferred Cutout Overview section.
Specifications
Height (H) : 2,000 Width (W) : 1,800 Depth (D) : 500 Protection Rating : NEMA Type 12 Product Family : ProLine Finish : Powder Coated Color Code : RAL 7035 Thickness (T) : 1.9 Cutout Type : Small Modification Services : Yes Type Number : Type 12 IP Rating : IP55 NEMA Rating : 12 Indoor, dust-resistant Weight : 553 Sub Brand : ProLine Material : Steel Size : 2000x1800x500mm Color : LtGray - Certificate
Certificate - CERT-00176 - NAM-USCertificate - CERT-00302 - NAM-USCertificate - CE-UKCA-00017_Proline-12 - NAM-US
DownloadsSpec Sheet
Data SheetData Sheet - Spec-00253 - NAM-CAData Sheet - Spec-00912 - NAM-US
Instruction ManualInstruction Manual - 35320001 - NAM-US
